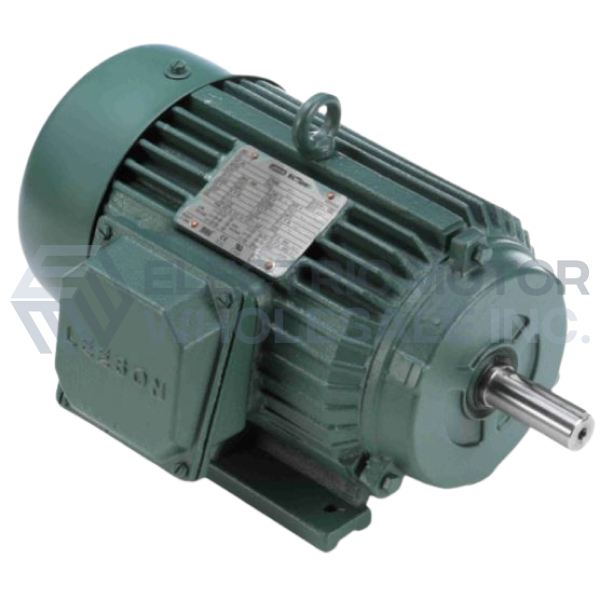

1.5HP LEESON 1725RPM 145T TEFC 3PH MOTOR G151702

TEFC Models: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.

Features Include:

• High-quality ball bearings
• Easy-to-read nameplate
• Some 56 frame motors have a 56, 56H, 143T and 145T combination base with 12 mounting holes for flexible installation.
• UL Recognized Component Listing and CSA approval.
• Warranty – 12 months from date of first use or 18 months from date of manufacture, whichever comes first.

Volts	208-230	Volts	460	Volts	190/380
F.L. Amps	4.9-4.4	F.L. Amps	2.2	F.L. Amps	3.6/1.8
S. F Amps	5.6	S. F Amps	2.8	S. F Amps	none
RPM	1800	Hertz	60/50
HP	1 1/2	Duty	CONTINUOUS	TYPE	TF
KW	1.12	Model Number	C145T17FB76A
Frame	145T	Serv. Factor	1.25	Phase	3
Max Amb	40	Design	NO DESIGN CODE	Code	K
Insul Class	F	Protection	NOT	Therm.Prot.
Eff 100%	85.5	Eff 75%		PF	72.5
UL	V-INS, CONST UL REC	CSA	No	Bearing OPE	6205
CC Number	CC005A	CE	Yes	Bearing PE	6205
Load Type		Inverter Type		Speed Range	NONE
Motor Wt.	53 LB	Enclosure	TEFC	Lubrication	STANDARD
Nameplate	80306	Mounting	RIGID	Rotation	REV
