100HP LEESON 1780RPM 405TC TEFC 3PH MOTOR G151680

LEESON G151680.60 has been Superseded by 171597.60

Catalog Number:  G151680.60
Description:  100HP,1780RPM,405TC,TEFC,3PH,60HZ
Ship Weight:  1056 lbs.

TEFC Models: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.

Features Include:

  • Durable cast iron frame
  • High-quality ball bearings
  • Easy-to-read nameplate
  • UL Recognized Component Listing and CSA approval.
  • Warranty – 12 months from date of first use or 18 months from date of manufacture, whichever comes first.
Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 250-229 F.L. Amps 114.5 F.L. Amps 209/104.5
S. F Amps 293.0 S. F Amps 146.5 S. F Amps 240/120
RPM 1800 Hertz 60/50
HP 100 Duty CONTINUOUS TYPE TF
KW 74.6
Frame 405TC Serv. Factor 1.25 Phase 3
Max Amb 40 Design B Code G
Insul Class F Protection NOT Therm.Prot.
Eff 100% 94.5 Eff 75%   PF 86.5
UL V-INS, CONST UL REC CSA No Bearing OPE 6314
CC Number NONE CE Yes Bearing PE 6316
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 1056 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 080307 Mounting RIGID Rotation REV

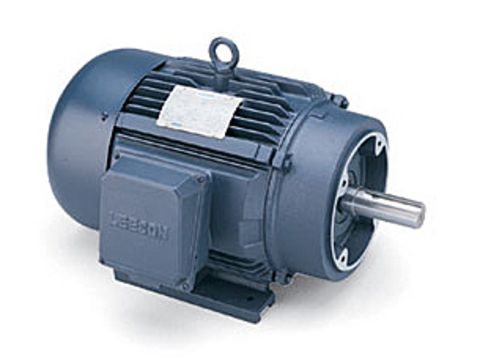

100HP LEESON 1780RPM 405TC TEFC 3PH MOTOR G151680
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: G151680.60
Stock # G151680
