30HP LEESON 1775RPM 286T 3PH MOTOR G151542

Catalog Number: G151542.60
Model Number: C286T17DB12
Description:  30HP,1775RPM,286T,DP,3PH,60/50HZ
Ship Weight:  442 lbs.

This Leeson Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: For use where exposure to water, dust and dirt exists. Ideally suited for use Farm / Ag equipment such as feeders, conveyors, fans, grain elevators, silo unloaders, and other demanding farm duty equipment.

FEATURES:

  • Cast Iron construction
  • Rigid base
  • 1 7/8" output shaft diameter
  • NEMA Epact efficiency
  • Rodent Screens
  • Re-greasable Bearings
  • 1.25 Service Factor
  • Class F insulation
  • Inverter Duty Insulation System
  • UL Recognized and CSA certified
  • Footnotes: C,CN
Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 77-72 F.L. Amps 36 F.L. Amps 72.0/36.0
S. F Amps 88.4 S. F Amps 44.2 S. F Amps 82.0/41.0
RPM 1800 Hertz 60/50
HP 30 Duty CONTINUOUS TYPE TD
KW 22.4 Model # C286T17DB12
Frame 286T Serv. Factor 1.25 Phase 3
Max Amb 40 Design B Code G
Insul Class F Protection NOT Therm.Prot.
Eff 100% 92.4 Eff 75%   PF 84.4
UL Yes CSA Yes Bearing OPE 6311
CC Number 005A CE Yes Bearing PE 6312
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 442 LB Enclosure DP Lubrication STANDARD
Nameplate 080307 Mounting RIGID Rotation REV
Assembly   Shaft Dia.   Ext. Diag. 004172.01

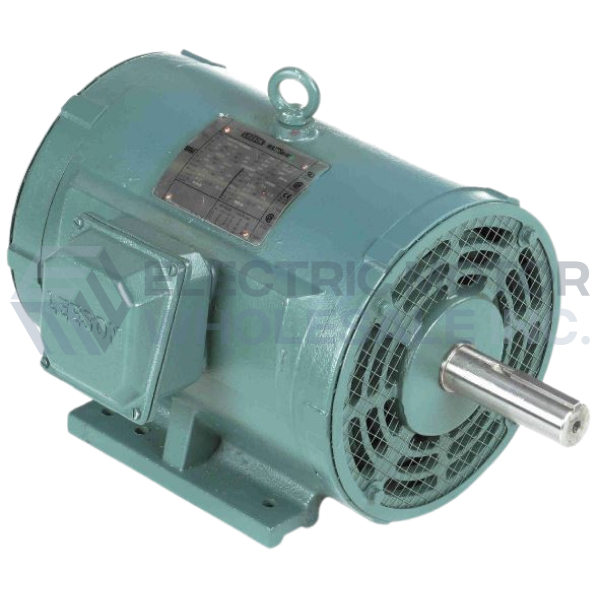

30HP LEESON 1775RPM 286T 3PH MOTOR G151542
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: G151542.60
Stock # G151542
