125HP LEESON 1190RPM 445T TEFC 3PH MOTOR G151370
125HP LEESON 1190RPM 445T TEFC 3PH MOTOR G151370

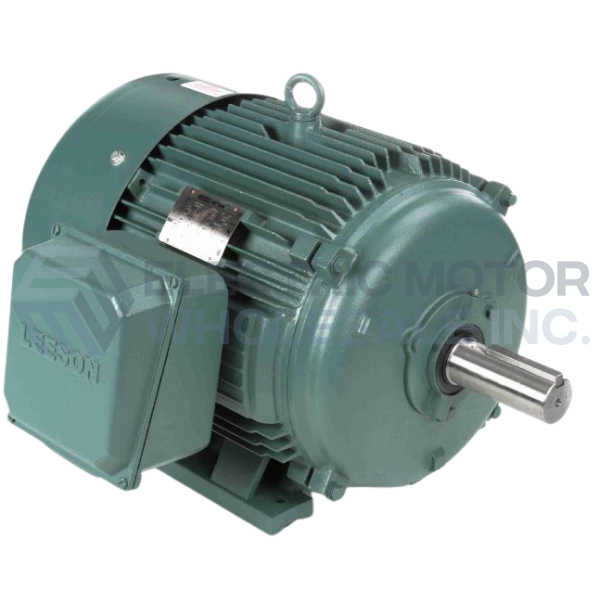

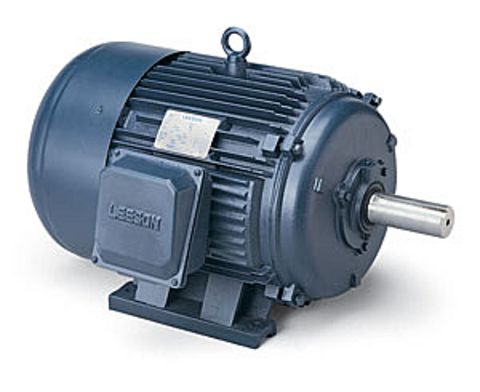

Picture is for reference only.
Part Number:
G151370Manufacturer:
Leeson ObsoleteManufacturer Part Number:
G151370.60This is item is for informational purposes only and cannot be purchased. Please contact customer service for more details.
Shipping Details
Dimensions:
24 x 36 x 24 inchesTechnical Details
Documentation
Additional Information
LEESON G151370.60 has been Superseded to 170260.60
| LEESON Catalog Number: | G151370.60 |
| Description: | 125HP,1190RPM,445T,TEFC,3PH,60HZ,WATTSAVER |
| Ship Weight: | 1648 lbs. |
TEFC Models: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.
Features Include:
- Durable Cast Iron frame
- High-quality ball bearings
- Easy-to-read nameplate
- UL Recognized Component Listing and CSA approval.
- Warranty – 12 months from date of first use or 18 months from date of manufacture, whichever comes first.
| Volts | 460 | Volts | Volts | 380 | |
| F.L. Amps | 147 | F.L. Amps | F.L. Amps | 143 | |
| S. F Amps | 183 | S. F Amps | S. F Amps | 162.5 | |
| RPM | 1200 | Hertz | 60/50 | ||
| HP | 125 | Duty | CONTINUOUS | TYPE | TF |
| KW | 93.3 | Model Number | C445T11FB4C | ||
| Frame | 445T | Serv. Factor | 1.25 | Phase | 3 |
| Max Amb | 40 | Design | B | Code | G |
| Insul Class | F | Protection | NOT | Therm.Prot. | |
| Eff 100% | 94.1 | Eff 75% | PF | 84.5 | |
| UL | Yes | CSA | Yes | Bearing OPE | 6317 |
| CC Number | 005A | CE | Yes | Bearing PE | 6318 |
| Load Type | Inverter Type | NONE | Speed Range | NONE | |
| Motor Wt. | 1648 LB | Enclosure | TEFC | Lubrication | STANDARD |
| Nameplate | 080371 | Mounting | RIGID | Rotation | REV |
This is item is for informational purposes only and cannot be purchased. Please contact customer service for more details.
