5HP LEESON 1750RPM 184T TEFC 3PH MOTOR G151322.60

5HP LEESON 1750RPM 184T TEFC 3PH MOTOR G151322.60

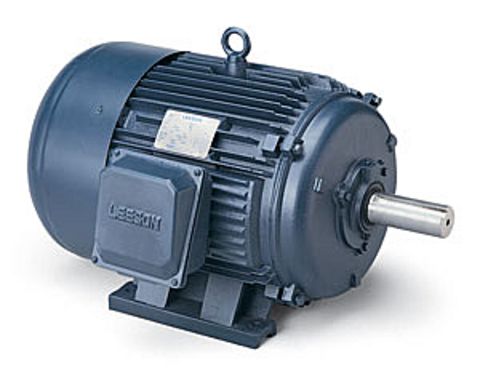

Picture is for reference only.

Part Number:

G151322.60

Model/Spec Number:

C184T17FB46C

Manufacturer:

Leeson Obsolete
G151322.60 LEESON 5HP general purpose motor meets or exceeds most utility rebate programs and the EPACT federally mandated efficiency levels.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

69 lbs

Dimensions:

14 x 24 x 14 inches

HS Code:

8501.52.4000

Technical Details

Motor Drawing

Connection Diagram

Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 14.2-13.8 F.L. Amps 6.9 F.L. Amps 11.2/5.6
S. F Amps 16.8 S. F Amps 8.4 S. F Amps
RPM 1800 Hertz 60/50
HP 5 Duty CONTINUOUS TYPE TF
KW 3.73 Model Number C184T17FB46C
Frame 184T Serv. Factor 1.25 Phase 3
Max Amb 40 Design B Code J
Insul Class F Protection NOT Therm.Prot.
Eff 100% 87.5 Eff 75%   PF 77.7
UL Yes CSA Yes Bearing OPE 6306
CC Number 005A CE Yes Bearing PE 6306
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 115 LB Enclosure TEFC Lubrication STANDARD
Nameplate 080306 Mounting RIGID Rotation REV
