15HP LEESON 3510RPM 215T TEFC 3PH MOTOR G151317.60

15HP LEESON 3510RPM 215T TEFC 3PH MOTOR G151317.60

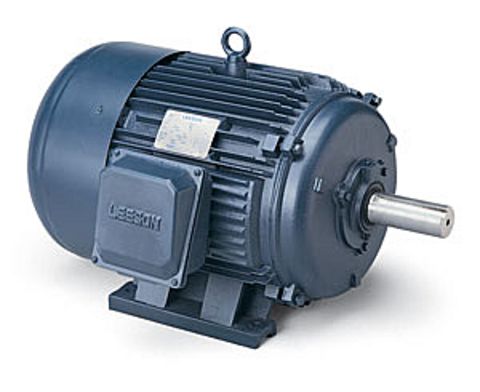

Picture is for reference only.

Part Number:

G151317.60

Model/Spec Number:

C215T34FB51C

Manufacturer:

Leeson Obsolete
G151317.60 LEESON 15HP general purpose motor meets or exceeds most utility rebate programs and the EPACT federally mandated efficiency levels.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

200 lbs

Dimensions:

24 x 36 x 24 inches

HS Code:

8501.52.4000

Technical Details

Brand:

Leeson

Application:

General Purpose

Output HP:

15

Output RPM:

3510

Frame Size NEMA:

215T

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

Voltage:

208-230/460

Frequency (Hz):

60

Motor Drawing

Connection Diagram

Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 38.5-35 F.L. Amps 17.5 F.L. Amps 17.5//14.5
S. F Amps 44.0 S. F Amps 22.0 S. F Amps 33/16.5
RPM 3600 Hertz 60/50
HP 15 Duty CONTINUOUS TYPE TF
KW 11.2 Model Number C215T34FB51C
Frame 215T Serv. Factor 1.25 Phase 3
Max Amb 40 Design B Code G
Insul Class F Protection NOT Therm.Prot.
Eff 100% 90.2 Eff 75%   PF 89
UL Yes CSA Yes Bearing OPE 6306
CC Number 005A CE Yes Bearing PE 6308
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 197 LB Enclosure TEFC Lubrication STANDARD
Nameplate 080306 Mounting RIGID Rotation REV
