200HP LEESON 1790RPM 447T TEFC 3PH MOTOR G150352.60

200HP LEESON 1790RPM 447T TEFC 3PH MOTOR G150352.60

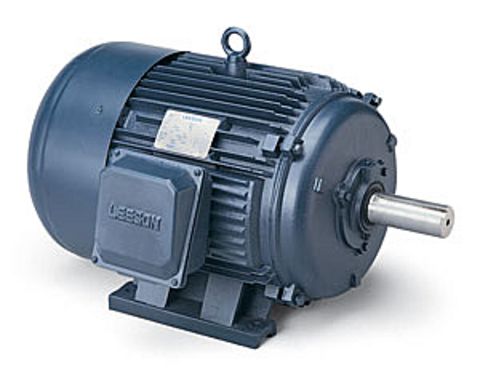

Picture is for reference only.

Part Number:

G150352.60

Model/Spec Number:

C447T17FB7C

Manufacturer:

Leeson Obsolete
LEESON G150352.60 has been Superseded to 170352.60

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

69 lbs

Dimensions:

24 x 36 x 24 inches

HS Code:

8501.33.0000

Technical Details

Brand:

Leeson

Application:

General Purpose

Output HP:

200

Output RPM:

1790

Frame Size NEMA:

447T

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

Voltage:

460

Frequency (Hz):

60

Motor Drawing

Connection Diagram

Volts 460 Volts   Volts
F.L. Amps 223 F.L. Amps   F.L. Amps
S. F Amps 258 S. F Amps   S. F Amps
RPM 1800 Hertz 60
HP 200 Duty CONTINUOUS TYPE TF
KW 149 Model Number C447T17FB7C
Frame 447T Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code G
Insul Class F Protection NOT Therm.Prot.
Eff 100% 95 Eff 75%   PF 88.4
UL Yes CSA Yes Bearing OPE 6317
CC Number 005A CE Yes Bearing PE 6319
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 2073 LB Enclosure TEFC Lubrication STANDARD
Nameplate 080371 Mounting RIGID Rotation REV

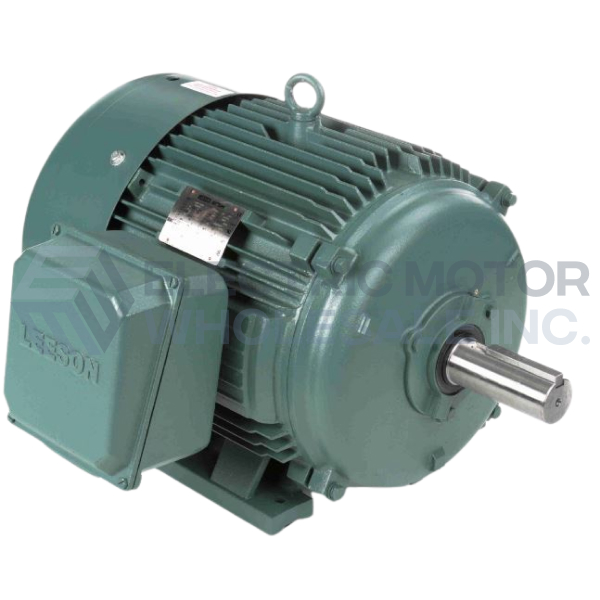

Image for 150HP LEESON 1790RPM 445T TEFC 3PH WATTSAVER MOTOR 170371.60

150HP LEESON 1790RPM 445T TEFC 3PH WATTSAVER MOTOR 170371.60

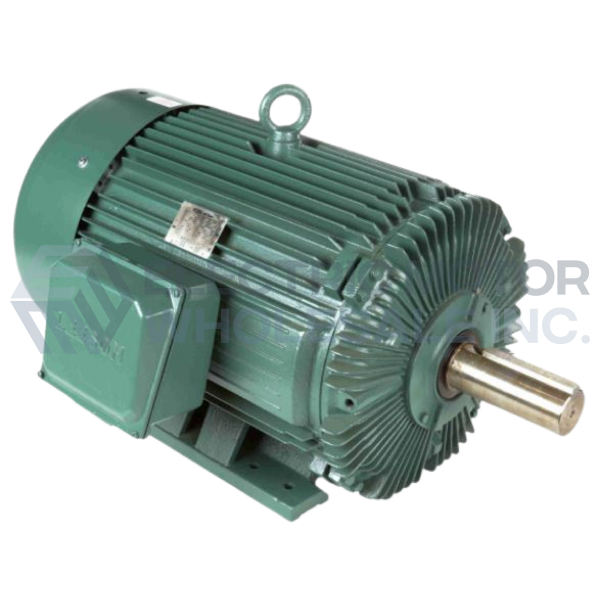

Image for 200HP LEESON 1790RPM 447T TEFC 3PH WATTSAVER MOTOR 170352.60
