5HP LEESON 3510RPM 184T TEFC 3PH MOTOR G150299.60
5HP LEESON 3510RPM 184T TEFC 3PH MOTOR G150299.60

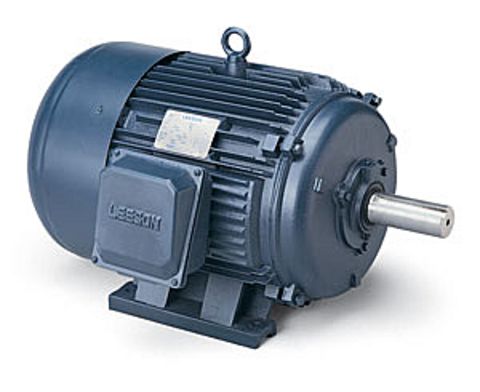

Picture is for reference only.
Part Number:
G150299.60Model/Spec Number:
C184T34FB2CManufacturer:
Leeson ObsoleteClick below to view suggested functional replacement.
Shipping Details
Weight:
115 lbsDimensions:
14 x 24 x 14 inchesHS Code:
8501.52.4000Technical Details
Specifications
Brand: | Leeson |
Application: | General Purpose |
Output HP: | 5 |
Output KW: | 3.7 |
Output RPM: | 3510 |
Frame Size NEMA: | 184T |
Mount NEMA: | With Base |
Enclosure NEMA: | TEFC |
Enclosure IEC: | IP43 |
Voltage: | 208-230/460 |
Documentation
Additional Information
TEFC Models: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals. Features Include: Durable cast iron frame High-quality ball bearings Easy-to-read nameplate UL Recognized Component Listing and CSA approval.
Volts
208-230
Volts
460
Volts
190/380
F.L. Amps
13-12
F.L. Amps
6
F.L. Amps
9.0/4.5
S. F Amps
13.8
S. F Amps
6.9
S. F Amps
10.2/5.1
RPM
3600
Hertz
60/50
HP
5
Duty
CONTINUOUS
TYPE
TF
KW
3.7
Model Number
C184T34FB2C
Frame
184T
Serv. Factor
1.15
Phase
3
Max Amb
40
Design
B
Code
J
Insul Class
F
Protection
NOT
Therm.Prot.
Eff 100%
87.5
Eff 75%
PF
89.7
UL
Yes
CSA
Yes
Bearing OPE
6205
CC Number
CE
No
Bearing PE
6206
Load Type
Inverter Type
Speed Range
NONE
Motor Wt.
110 LB
Enclosure
TEFC
Lubrication
STANDARD
Nameplate
080306
Mounting
RIGID
Rotation
REV
