7.5HP LEESON 1760RPM 213T TEFC 3PH MOTOR G150157

LEESON G150157.60 has been Superseded by 170157.60

LEESON Catalog Number:  G150157.60
Description:  7.5HP,1760RPM,213T,TEFC,3PH,60HZ
Ship Weight:  163 lbs.

TEFC Models: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.

Features Include:

  • Durable cast iron frame
  • High-quality ball bearings
  • Easy-to-read nameplate
  • UL Recognized Component Listing and CSA approval.
  • Warranty – 12 months from date of first use or 18 months from date of manufacture, whichever comes first.
Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 20.4-19.2 F.L. Amps 9.6 F.L. Amps 16.0/8.0
S. F Amps 23.0 S. F Amps 11.5 S. F Amps
RPM 1800 Hertz 60/50
KW 5.60 Model Number C213T17FB45C
Frame 213T Serv. Factor 1.25 Phase 3
Max Amb 40 Design B Code H
Insul Class F Protection NOT Therm.Prot.
Eff 100% 89.5 Eff 75%   PF 82
UL Yes CSA Yes Bearing OPE 6306
CC Number 005A CE Yes Bearing PE 6308
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 163 LB Enclosure TEFC Lubrication STANDARD
Nameplate 080306 Mounting RIGID Rotation REV

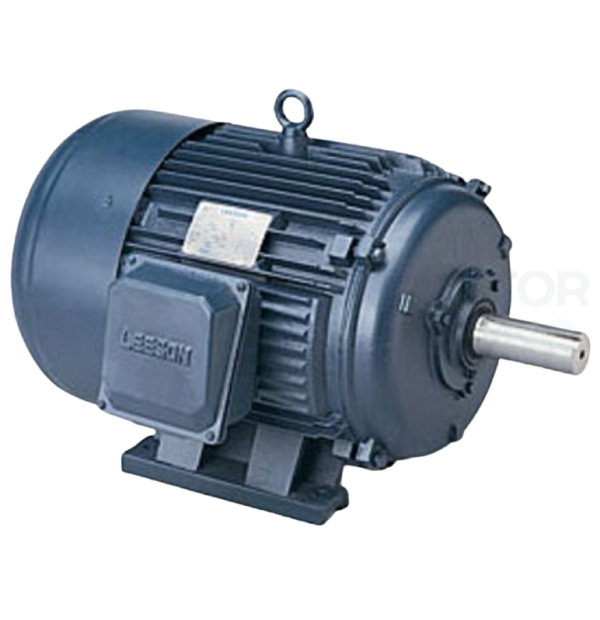

7.5HP LEESON 1760RPM 213T TEFC 3PH MOTOR G150157
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: G150157.60
Stock # G150157
