10HP LEESON 1750RPM 215T DP 3PH MOTOR G150144.60

LEESON G150144.60 has been Superseded by 170144.60

Catalog Number:  G150144.60
Model Number:  C215T17DB52C
Description:  10HP,1750RPM,215T,DP,3PH,60HZ
Ship Weight:  168 lbs.
Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 26.4-25 F.L. Amps 12.5 F.L. Amps 23.0/11.5
S. F Amps 31.0 S. F Amps 15.5 S. F Amps 26/13
RPM 1800 Hertz 60/50
HP 10 Duty CONTINUOUS TYPE TD
KW 7.46
Frame 215T Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code H
Insul Class F Protection NOT Therm.Prot.
Eff 100% 89.5 Eff 75%   PF 82.6
UL Yes CSA Yes Bearing OPE 6208
CC Number 005A CE Yes Bearing PE 6308
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 168 LB Enclosure DP Lubrication POLYREX EM
Nameplate 080306 Mounting RIGID Rotation REV

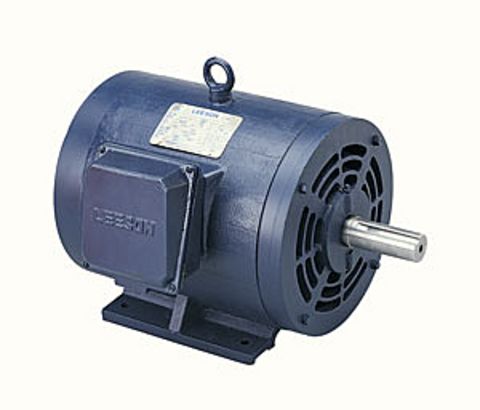

10HP LEESON 1750RPM 215T DP 3PH MOTOR G150144.60
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: G150144.60
Stock # G150144
