10HP LEESON 1760RPM 215T TEFC 3PH MOTOR G150140.60

10HP LEESON 1760RPM 215T TEFC 3PH MOTOR G150140.60

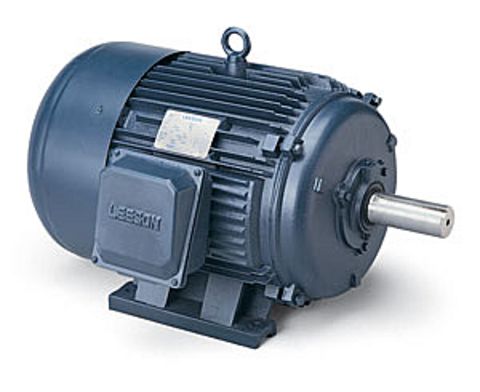

Picture is for reference only.

Part Number:

G150140.60

Model/Spec Number:

C215T17FB45C

Manufacturer:

Leeson Obsolete
G150140.60 LEESON 10HP General Purpose Three Phase Motor.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

195 lbs

Dimensions:

16 x 26 x 16 inches

HS Code:

8501.52.4000

Technical Details

Brand:

Leeson

Application:

General Purpose

Output HP:

10

Output KW:

7.5-10

Output RPM:

1760

Frame Size NEMA:

215T

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP44

Voltage:

208-230/460//190/380

Motor Drawing

Connection Diagram

Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 26.7-25.2 F.L. Amps 12.6 F.L. Amps 23.2/11.6
S. F Amps 30.6 S. F Amps 15.3 S. F Amps 26/13
RPM 1800 Hertz 60/50
HP 10 Duty CONTINUOUS TYPE TF
KW 7.46 Model Number C215T17FB45C
Frame 215T Serv. Factor 1.25 Phase 3
Max Amb 40 Design B Code H
Insul Class F Protection NOT Therm.Prot.
Eff 100% 89.5 Eff 75%   PF 83
UL Yes CSA Yes Bearing OPE 6306
CC Number CC005A CE Yes Bearing PE 6308
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 189 LB Enclosure TEFC Lubrication STANDARD
Nameplate 080306 Mounting RIGID Rotation REV
