7.5HP LEESON 1170RPM 254T TEFC 3PH MOTOR G150122
7.5HP LEESON 1170RPM 254T TEFC 3PH MOTOR G150122

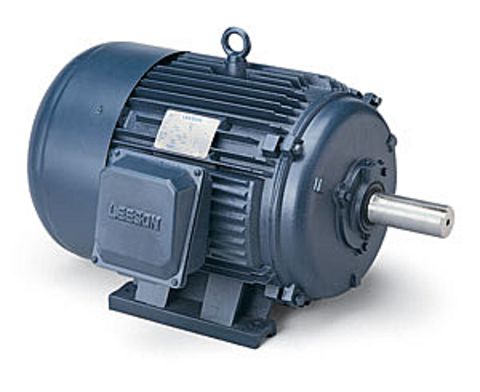

Picture is for reference only.
Part Number:
G150122Manufacturer:
Leeson ObsoleteManufacturer Part Number:
G150122.60Click below to view suggested functional replacement.
Shipping Details
Dimensions:
16 x 24 x 16 inchesTechnical Details
Documentation
Additional Information

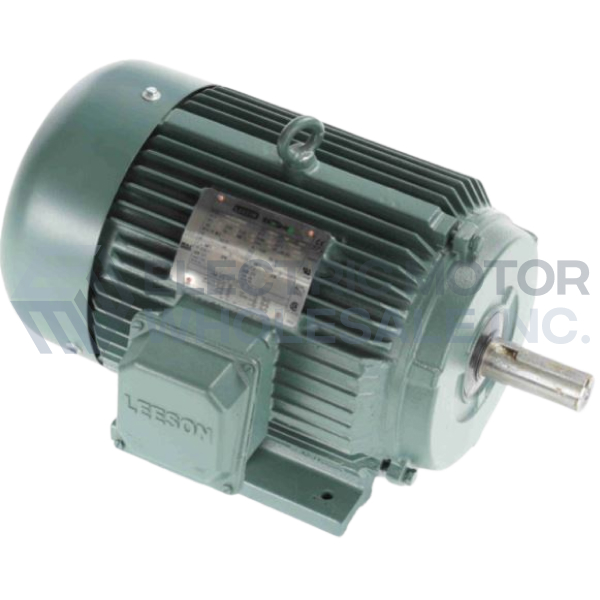

LEESON G150122.60 has been Superseded by 170122.60
| LEESON Catalog Number: | G150122.60 |
| Description: | 7.5HP,1170RPM,254T,TEFC,3PH,60HZ |
| Ship Weight: | 250 lbs. |
TEFC Models: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.
Features Include:
- Durable cast iron frame
- High-quality ball bearings
- Easy-to-read nameplate
- UL Recognized Component Listing and CSA approval.
- Warranty – 12 months from date of first use or 18 months from date of manufacture, whichever comes first.
| Volts | 208-230 | Volts | 460 | Volts | 190/380 |
| F.L. Amps | 21-20 | F.L. Amps | 10 | F.L. Amps | 17.0/8.5 |
| S. F Amps | 24.0 | S. F Amps | 12.0 | S. F Amps | 18.8/9.4 |
| RPM | 1200 | Hertz | 60/50 | ||
| HP | 7.5 | Duty | CONTINUOUS | TYPE | TF |
| KW | 5.60 | Model Number | C254T11FB5C | ||
| Frame | 254T | Serv. Factor | 1.25 | Phase | 3 |
| Max Amb | 40 | Design | B | Code | H |
| Insul Class | F | Protection | NOT | Therm.Prot. | |
| Eff 100% | 89.5 | Eff 75% | PF | 78.5 | |
| UL | Yes | CSA | Yes | Bearing OPE | 6308 |
| CC Number | 005A | CE | Yes | Bearing PE | 6309 |
| Load Type | Inverter Type | NONE | Speed Range | NONE | |
| Motor Wt. | 250 LB | Enclosure | TEFC | Lubrication | STANDARD |
| Nameplate | 080307 | Mounting | RIGID | Rotation | REV |
