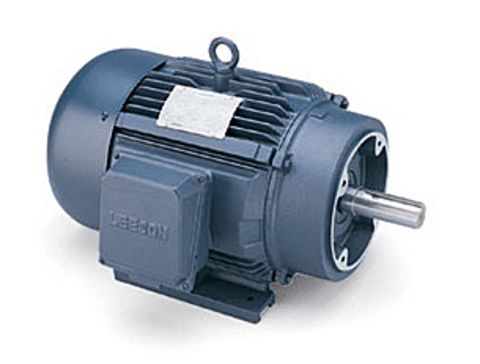

50HP LEESON 3540RPM 326TSC TEFC 3PH MOTOR G150112.60

50HP LEESON 3540RPM 326TSC TEFC 3PH MOTOR G150112.60

Picture is for reference only.

Part Number:

G150112.60

Model/Spec Number:

C326T34FK2D

Manufacturer:

Leeson Obsolete
LEESON G150112.60 50HP Three Phase Motor is designed for use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Dimensions:

32 x 42 x 32 inches

HS Code:

8501.52.0000

Technical Details

Brand:

Leeson

Application:

General Purpose

Output HP:

50//40

Output KW:

37//30

Output RPM:

3540//2940

Frame Size NEMA:

326TSC

Mount NEMA:

C Face With Base

Enclosure NEMA:

TEFC

Voltage:

208-230/460//190/380

Frequency (Hz):

60//50

Motor Drawing
