15HP LEESON 3510RPM 254TC TEFC 3PH MOTOR G150103.60

15HP LEESON 3510RPM 254TC TEFC 3PH MOTOR G150103.60

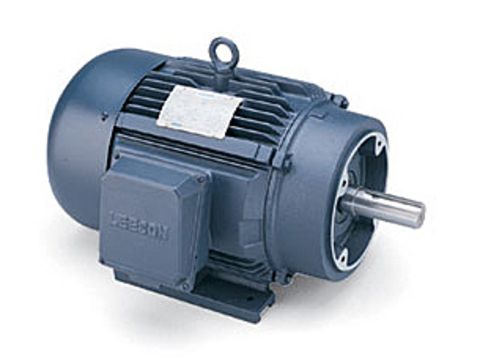

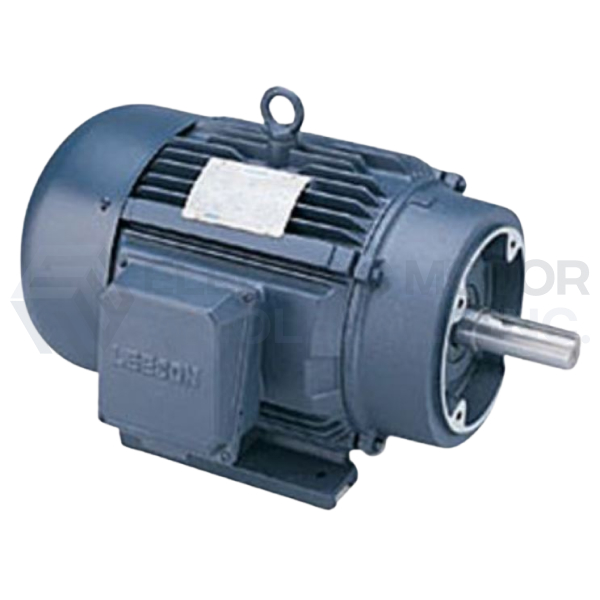

Picture is for reference only.

Part Number:

G150103.60

Model/Spec Number:

C254T34FK4C

Manufacturer:

Leeson Obsolete
G150103.60 LEESON 15HP Three Phase Motor is designed for use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications.

Ordering Notes

Suggested item is a functional replacement but may have dimensional or mechanical differences

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

270 lbs

Dimensions:

24 x 32 x 24 inches

HS Code:

8501.52.4000

Technical Details

Brand:

Leeson

Application:

General Purpose

Output HP:

15//10

Output RPM:

3510//2750

Frame Size NEMA:

254TC

Mount NEMA:

C Face With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

Voltage:

230/460//190/380

Frequency (Hz):

60//50

Motor Drawing

Connection Diagram

TEFC Models: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.

Features Include:

  • Durable cast iron frame
  • High-quality ball bearings
  • Easy-to-read nameplate
  • UL Recognized Component Listing and CSA approval.
