75HP LEESON 1185RPM 405T TEFC 3PH MOTOR G150099.60

75HP LEESON 1185RPM 405T TEFC 3PH MOTOR G150099.60

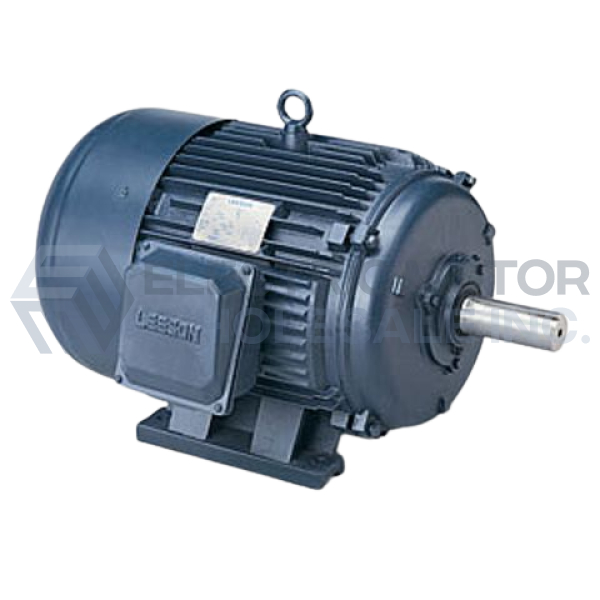

Picture is for reference only.

Part Number:

G150099.60

Manufacturer:

Leeson Obsolete

Manufacturer Part Number:

C405T11FB7D
G150099.60 LEESON 75HP Three Phase TEFC NEMA Motor used on compressors, pumps, conveyors, blowers, and other machinery in environments that are relatively clean and dry.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

995 lbs

Dimensions:

32 x 36 x 24 inches

HS Code:

8501.52.4000

Technical Details

Brand:

Leeson

Application:

General Purpose

Output HP:

75//50

Output KW:

56//37.3

Output RPM:

1185//985

Frame Size NEMA:

405T

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

Voltage:

208-230/460//190/380

Motor Drawing

Connection Diagram

TEFC Models: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.

Features Include:

  • Durable Cast Iron frame
  • High-quality ball bearings
  • Easy-to-read nameplate
  • UL Recognized Component Listing and CSA approval
