60HP LEESON 1190RPM 404T TEFC 3PH MOTOR G150098
60HP LEESON 1190RPM 404T TEFC 3PH MOTOR G150098

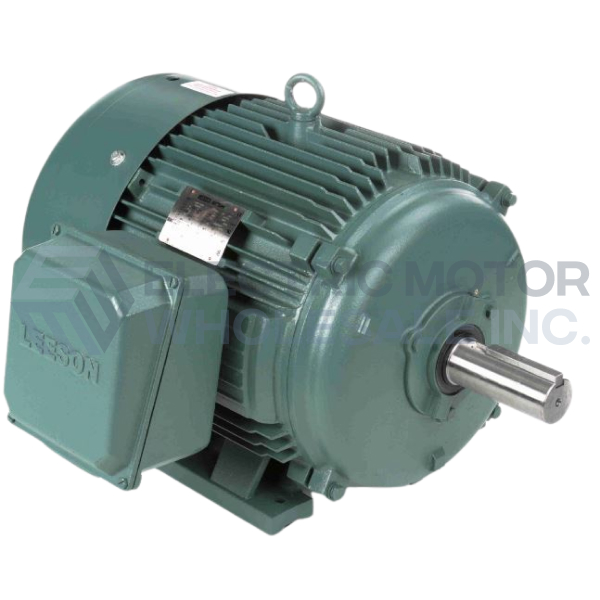

Picture is for reference only.
Part Number:
G150098Manufacturer:
Leeson ObsoleteManufacturer Part Number:
G150098.60This is item is for informational purposes only and cannot be purchased. Please contact customer service for more details.
Shipping Details
Dimensions:
24 x 36 x 24 inchesTechnical Details
Documentation
Additional Information
LEESON G150098.60 has been Superseded to 170098.60
| LEESON Catalog Number: | G150098.60 |
| Description: | 60HP,1190RPM,404T,TEFC,3PH,60HZ,WATTSAVER |
| Ship Weight: | 1005 lbs. |
TEFC Models: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.
Features Include:
- Durable Cast Iron frame
- High-quality ball bearings
- Easy-to-read nameplate
- UL Recognized Component Listing and CSA approval.
- Warranty – 12 months from date of first use or 18 months from date of manufacture, whichever comes first.
| Volts | 208-230 | Volts | 460 | Volts | 190/380 |
| F.L. Amps | 156-145 | F.L. Amps | 72.5 | F.L. Amps | 146/73 |
| S. F Amps | 178.0 | S. F Amps | 89.0 | S. F Amps | 166/83 |
| RPM | 1200 | Hertz | 60/50 | ||
| HP | 60 | Duty | CONTINUOUS | TYPE | TF |
| KW | 44.8 | Model Number | C404T11FB5D | ||
| Frame | 404T | Serv. Factor | 1.25 | Phase | 3 |
| Max Amb | 40 | Design | B | Code | G |
| Insul Class | F | Protection | NOT | Therm.Prot. | |
| Eff 100% | 93.6 | Eff 75% | PF | 82.8 | |
| UL | Yes | CSA | Yes | Bearing OPE | 6314 |
| CC Number | 005A | CE | Yes | Bearing PE | 6316 |
| Load Type | Inverter Type | NONE | Speed Range | NONE | |
| Motor Wt. | 1005 LB | Enclosure | TEFC | Lubrication | STANDARD |
| Nameplate | 080307 | Mounting | RIGID | Rotation | REV |
This is item is for informational purposes only and cannot be purchased. Please contact customer service for more details.
