50HP LEESON 1180RPM 365T TEFC 3PH MOTOR G150097
50HP LEESON 1180RPM 365T TEFC 3PH MOTOR G150097
Picture is for reference only.
Part Number:
G150097Manufacturer:
Leeson ObsoleteManufacturer Part Number:
G150097.60This is item is for informational purposes only and cannot be purchased. Please contact customer service for more details.
Shipping Details
Dimensions:
24 x 36 x 24 inchesTechnical Details
Documentation
Additional Information

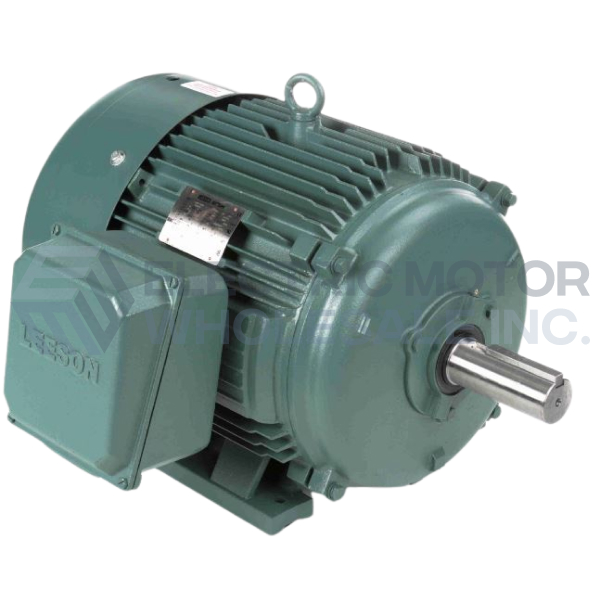

LEESON G150097.60 has been Superseded to 170097.60
| LEESON Catalog Number: | G150097.60 |
| Description: | 50HP,1180RPM,365T,TEFC,3PH,60HZ,WATTSAVER |
| Ship Weight: | 852 lbs. |
TEFC Models: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.
Features Include:
- Durable Cast Iron frame
- High-quality ball bearings
- Easy-to-read nameplate
- UL Recognized Component Listing and CSA approval.
- Warranty – 12 months from date of first use or 18 months from date of manufacture, whichever comes first.
| Volts | 208-230 | Volts | 460 | Volts | 190/380 |
| F.L. Amps | 136-123 | F.L. Amps | 61.5 | F.L. Amps | 118.0/59.0 |
| S. F Amps | 144 | S. F Amps | 72 | S. F Amps | |
| RPM | 1200 | Hertz | 60/50 | ||
| HP | 50 | Duty | CONTINUOUS | TYPE | TF |
| KW | 37 | Model Number | C365T11FB7D | ||
| Frame | 365T | Serv. Factor | 1.15 | Phase | 3 |
| Max Amb | 40 | Design | B | Code | G |
| Insul Class | F | Protection | NOT | Therm.Prot. | |
| Eff 100% | 93 | Eff 75% | PF | 82 | |
| UL | Yes | CSA | Yes | Bearing OPE | 6313 |
| CC Number | 005A | CE | Yes | Bearing PE | 6313 |
| Load Type | Inverter Type | Speed Range | NONE | ||
| Motor Wt. | 852 LB | Enclosure | TEFC | Lubrication | STANDARD |
| Nameplate | 080307 | Mounting | RIGID | Rotation | REV |
This is item is for informational purposes only and cannot be purchased. Please contact customer service for more details.
