100HP LEESON 1785RPM 405T TEFC 3PH MOTOR G150087.60

100HP LEESON 1785RPM 405T TEFC 3PH MOTOR G150087.60

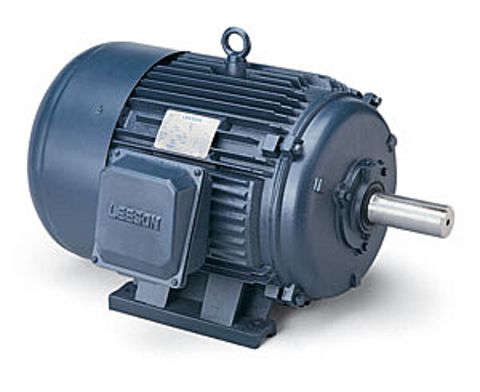

Picture is for reference only.

Part Number:

G150087.60

Manufacturer:

Leeson Obsolete

Manufacturer Part Number:

C405T17FB6D
G150087.60 LEESON 100HP Three Phase Motor is designed for use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

1,160 lbs

Dimensions:

36 x 36 x 24 inches

HS Code:

8501.52.0000

Technical Details

Brand:

Leeson

Application:

General Purpose

Output HP:

100//75

Output RPM:

1745/1465

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

Voltage:

230/460//190/380

Frequency (Hz):

60//50

Efficiency:

94.5

Motor Drawing

Connection Diagram

TEFC Models: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.

Features Include:

  • Durable Cast Iron frame
  • High-quality ball bearings
  • Easy-to-read nameplate
  • UL Recognized Component Listing and CSA approval.
