40HP LEESON 1775RPM 324TC TEFC 3PH MOTOR G150083.60

LEESON G150083.60 has been Superseded by 171593.60

Catalog Number:  G150083.60
Model Number:  C324T17FK3 D
Description:  40HP,1775RPM,324TC,TEFC,3PH,60HZ
Ship Weight:  585 lbs.
Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 104-95.2 F.L. Amps 47.6 F.L. Amps 88.0/44.0
S. F Amps 118.0 S. F Amps 59.0 S. F Amps
RPM 1800 Hertz 60/50
KW 29.8 Model Number C324T17FK3D
Frame 324TC Serv. Factor 1.25 Phase 3
Max Amb 40 Design B Code G
Insul Class F Protection NOT Therm.Prot.
Eff 100% 93 Eff 75%   PF 84.7
UL Yes CSA Yes Bearing OPE 6312
CC Number 005A CE Yes Bearing PE 6312
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 606 LB Enclosure TEFC Lubrication STANDARD
Nameplate 080307 Mounting RIGID C Rotation REV

TEFC Models: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.

Features Include:

  • Durable rolled steel frame
  • High-quality ball bearings
  • Easy-to-read nameplate
  • Some 56 frame motors have a 56, 56H, 143T and 145T combination base with 12 mounting holes for flexible installation.
  • UL Recognized Component Listing and CSA approval.
  • Warranty – 12 months from date of first use or 18 months from date of manufacture, whichever comes first.

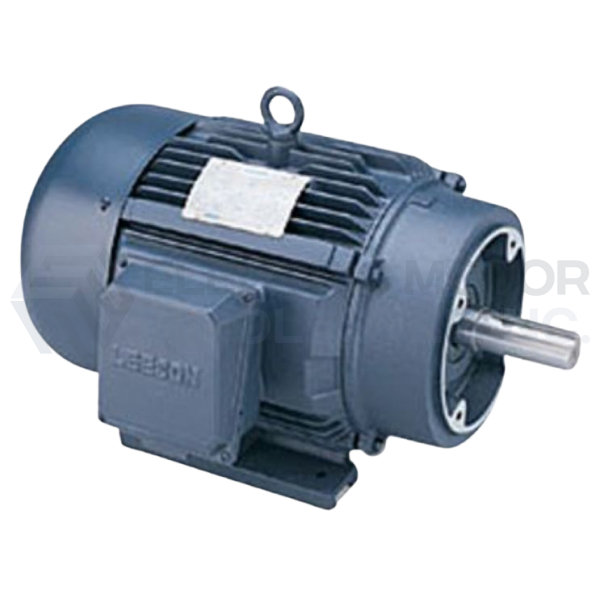

40HP LEESON 1775RPM 324TC TEFC 3PH MOTOR G150083.60
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: G150083.60
Stock # G150083
