15HP LEESON 1765RPM 254T DP 3PH MOTOR G150065.60
15HP LEESON 1765RPM 254T DP 3PH MOTOR G150065.60

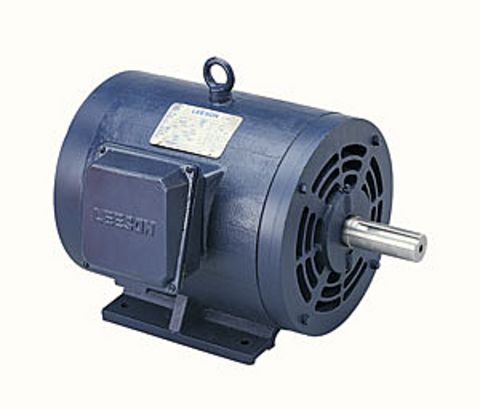

Picture is for reference only.
Part Number:
G150065.60Model/Spec Number:
C254T17DB12CManufacturer:
Leeson ObsoleteManufacturer Part Number:
G150065.60Click below to view suggested functional replacement.
Shipping Details
Weight:
255 lbsDimensions:
16 x 26 x 16 inchesTechnical Details
Specifications
Brand: | Leeson |
Application: | General Purpose |
Output HP: | 15 |
Output KW: | 11-14 |
Output RPM: | 1765 |
Frame Size NEMA: | 254T |
Enclosure NEMA: | DP |
Enclosure IEC: | IP22 |
Voltage: | 208-230/460//190/380 |
Frequency (Hz): | 60//50 |
Documentation
Additional Information
| Volts | 208-230 | Volts | 460 | Volts | 190/380 | |||
| FL Amps | 40.5-37.6 | FL Amps | 18.8 | FL Amps | 31.0/15.5 | |||
| SF Amps | 46.0 | SF Amps | 23.0 | SF Amps | 34.8/17.4 | |||
 | ||||||||
| RPM | 1800 | Hertz | 60/50 | |||||
| HP | 15 | Duty | CONTINUOUS | Type | TD | |||
| KW | 11.2 | SF | 1.25 | Phase | 3 | |||
| Frame | 254T | Design | B | KVA Code | G | |||
| Ambient | 40 | Protection | NOT | Therm.Prot. | ||||
| Insulation Class | F | Eff(75%) | PF | 82 | ||||
| Eff(100%) | 91 | CSA | Y | Bearing OPE | 6208 | |||
| UL | Y | CE | Y | Bearing PE | 6309 | |||
| CC Number | 005A | Inverter Type | NONE | Speed Range | NONE | |||
| LOad Type | ||||||||
| ||||||||
| Motor Wt. | 287 LB | Enclosure | DP | Lubrication | VERIFY | |||
| Nameplate | 080307 | Mounting | RIGID | Rotation | REV | |||
| Shaft Diam. | Cust Part No. | Packaging | 307997.99 | |||||
| Winding | T12904015 | Carton Label | INDIVIDUAL | |||||
| Group | 3 | Iris | ||||||
| Paint | NAN | Hazardous Location | NONE | Test Card | ||||
