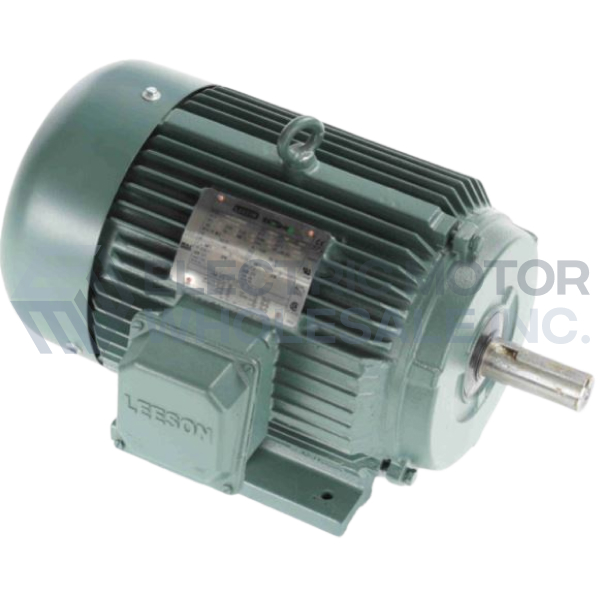

15HP LEESON 3525RPM 254T TEFC 3PH MOTOR G150062.60

15HP LEESON 3525RPM 254T TEFC 3PH MOTOR G150062.60

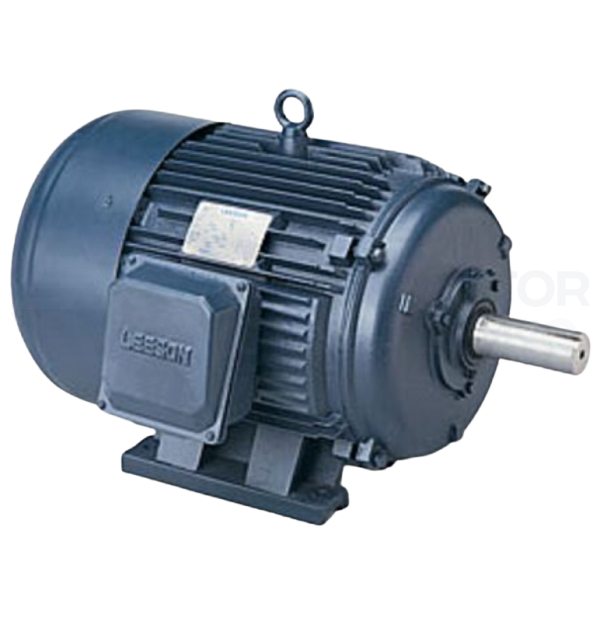

Picture is for reference only.

Part Number:

G150062.60

Manufacturer:

Leeson Obsolete

Manufacturer Part Number:

C254T34FB6C
G150062.60 LEESON 15HP general purpose and inverter fed motor meets or exceeds most utility rebate programs and the EPAct federally mandated efficiency levels.

Ordering Notes

Suggested item is a functional replacement but may have dimensional or mechanical differences.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

291 lbs

Dimensions:

23 x 23 x 14 inches

HS Code:

8501.52.4000

Technical Details

Brand:

Leeson

Application:

General Purpose

Output RPM:

3525//2750

Frame Size NEMA:

254T

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP54

Voltage:

230/460//190/380

Frequency (Hz):

60//50

Efficiency:

90.2

Motor Drawing

Connection Diagram

TEFC Models: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.

Features Include:

  • Durable Cast Iron frame
  • High-quality ball bearings
  • Easy-to-read nameplate
  • UL Recognized Component Listing and CSA approval.
