60HP LEESON 3570RPM 364TS TEFC 3PH MOTOR G150043
60HP LEESON 3570RPM 364TS TEFC 3PH MOTOR G150043

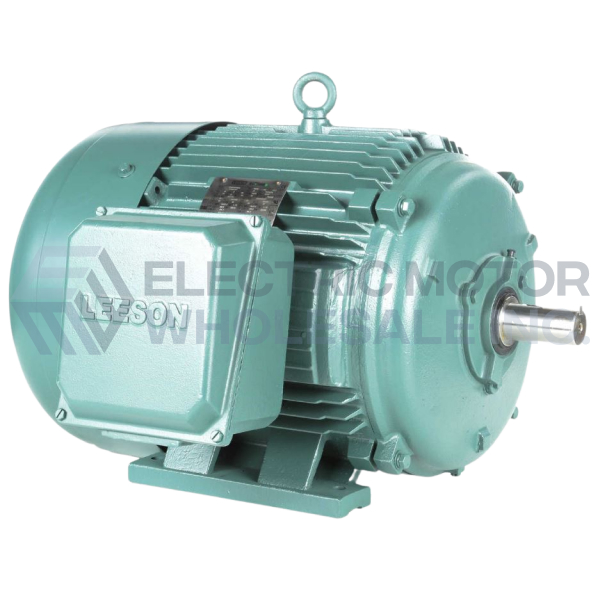

Picture is for reference only.
Part Number:
G150043Manufacturer:
Leeson ObsoleteManufacturer Part Number:
G150043.60This is item is for informational purposes only and cannot be purchased. Please contact customer service for more details.
Shipping Details
Dimensions:
24 x 36 x 24 inchesTechnical Details
Documentation
Additional Information
LEESON G150043.60 has been Superseded to 170043.60
| LEESON Catalog Number: | G150043.60 |
| Description: | 60HP,3570RPM,364TS,TEFC,3PH,60HZ,WATTSAVER |
| Ship Weight: | 742 lbs. |
TEFC Models: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.
Features Include:
- Durable Cast Iron frame
- High-quality ball bearings
- Easy-to-read nameplate
- UL Recognized Component Listing and CSA approval.
- Warranty – 12 months from date of first use or 18 months from date of manufacture, whichever comes first.
| Volts | 208-230 | Volts | 460 | Volts | 190/380 |
| F.L. Amps | 152-137 | F.L. Amps | 68.5 | F.L. Amps | 133/66.5 |
| S. F Amps | 165.0 | S. F Amps | 82.5 | S. F Amps | 154/77 |
| RPM | 3600 | Hertz | 60/50 | ||
| HP | 60 | Duty | CONTINUOUS | TYPE | TF |
| KW | 44.8 | Model Number | C364T34FB5D | ||
| Frame | 364TS | Serv. Factor | 1.25 | Phase | 3 |
| Max Amb | 40 | Design | B | Code | G |
| Insul Class | F | Protection | NOT | Therm.Prot. | |
| Eff 100% | 93 | Eff 75% | PF | 88.5 | |
| UL | Yes | CSA | Yes | Bearing OPE | 6313 |
| CC Number | 005A | CE | Yes | Bearing PE | 6313 |
| Load Type | Inverter Type | NONE | Speed Range | NONE | |
| Motor Wt. | 742 LB | Enclosure | TEFC | Lubrication | STANDARD |
| Nameplate | 080307 | Mounting | RIGID | Rotation | REV |
This is item is for informational purposes only and cannot be purchased. Please contact customer service for more details.
