30HP LEESON 3550RPM 284TS DP 3PH MOTOR G150036.60
30HP LEESON 3550RPM 284TS DP 3PH MOTOR G150036.60

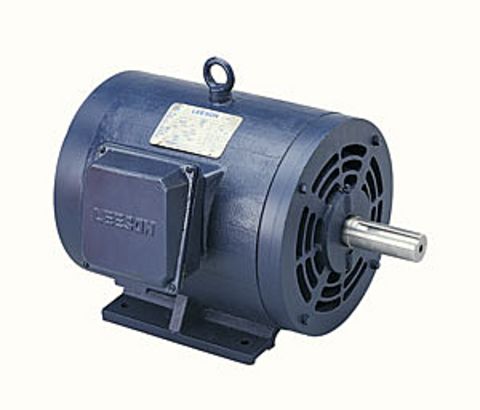

Picture is for reference only.
Part Number:
G150036Manufacturer:
Leeson ObsoleteManufacturer Part Number:
G150036.60This is item is for informational purposes only and cannot be purchased. Please contact customer service for more details.
Shipping Details
Dimensions:
24 x 36 x 24 inchesTechnical Details
Documentation
Additional Information

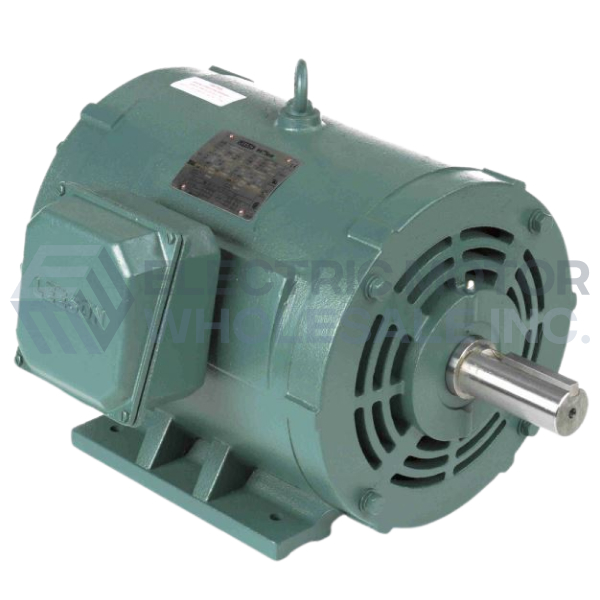

LEESON G150036.60 has been Superseded by 170036.60
| Catalog Number: | G150036.60 |
| Description: | 30HP,3550RPM,284TS,DP,3PH,60HZ |
| Ship Weight: | 350 lbs. |
DP Models: For use where water and dust exposure is moderate. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.
Features:
- UL Recognized Component Listing and CSA approval.
- Warranty – 12 months from date of first use or 18 months from date of manufacture, whichever comes first.
| Volts | 208-230 | Volts | 460 | Volts | |
| F.L. Amps | 77.9-70.4 | F.L. Amps | 35.2 | F.L. Amps | |
| S. F Amps | 81.4 | S. F Amps | 40.7 | S. F Amps | |
| RPM | 3600 | Hertz | 60 | ||
| HP | 30 | Duty | CONTINUOUS | TYPE | TD |
| KW | 22.38 | ||||
| Frame | 284TS | Serv. Factor | 1.15 | Phase | 3 |
| Max Amb | 40 | Design | B | Code | G |
| Insul Class | F | Protection | NOT | Therm.Prot. | |
| Eff 100% | 91 | Eff 75% | PF | 87.7 | |
| UL | Yes | CSA | Yes | Bearing OPE | 6211 |
| CC Number | 005A | CE | Yes | Bearing PE | 6312 |
| Load Type | Inverter Type | NONE | Speed Range | NONE | |
| Motor Wt. | 383 LB | Enclosure | DP | Lubrication | STANDARD |
| Nameplate | 080307 | Mounting | RIGID | Rotation | REV |
