20HP LEESON 3540RPM 256T TEFC 3PH MOTOR G150033
20HP LEESON 3540RPM 256T TEFC 3PH MOTOR G150033

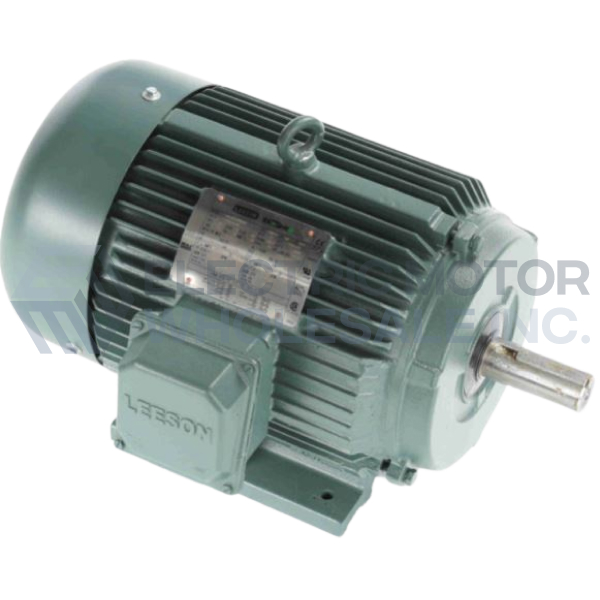

Picture is for reference only.
Part Number:
G150033Manufacturer:
Leeson ObsoleteManufacturer Part Number:
G150033.60This is item is for informational purposes only and cannot be purchased. Please contact customer service for more details.
Shipping Details
Dimensions:
14 x 11 x 11 inchesTechnical Details
Documentation
Additional Information
LEESON G150033.60 has been Superseded by 170033.60
| LEESON Catalog Number: | G150033.60 |
| Description: | 20HP,3540RPM,256T,TEFC,3PH,60/50HZ |
| Ship Weight: | 306 lbs. |
TEFC Models: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.
Features Include:
- Durable cast-iron frame
- High-quality ball bearings
- Easy-to-read nameplate
- UL Recognized Component Listing and CSA approval.
- Warranty – 12 months from date of first use or 18 months from date of manufacture, whichever comes first.
| Volts | 208-230 | Volts | 460 | Volts | 190/380 |
| F.L. Amps | 51.3-46.2 | F.L. Amps | 23.1 | F.L. Amps | 42.0/21.0 |
| S. F Amps | 58.8 | S. F Amps | 29.4 | S. F Amps | 48/24 |
| RPM | 3600 | Hertz | 60/50 | ||
| HP | 20 | Duty | CONTINUOUS | TYPE | TF |
| KW | 14.9 | Model Number | C256T34FB12C | ||
| Frame | 256T | Serv. Factor | 1.25 | Phase | 3 |
| Max Amb | 40 | Design | B | Code | G |
| Insul Class | F | Protection | NOT | Therm.Prot. | |
| Eff 100% | 90.2 | Eff 75% | PF | 89.7 | |
| UL | Yes | CSA | Yes | Bearing OPE | 6308 |
| CC Number | 005A | CE | Yes | Bearing PE | 6309 |
| Load Type | Inverter Type | Speed Range | NONE | ||
| Motor Wt. | 306 LB | Enclosure | TEFC | Lubrication | STANDARD |
| Nameplate | 080307 | Mounting | RIGID | Rotation | REV |
