60HP LEESON 1780RPM 364T TEFC 3PH MOTOR G150027

LEESON G150027.60 has been Superseded to 170027.60

LEESON Catalog Number:  G150027.60
Description:  60HP,1780RPM,364T,TEFC,3PH,60HZ,WATTSAVER
Ship Weight:  798 lbs.

TEFC Models: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.

Features Include:

  • Durable Cast Iron frame
  • High-quality ball bearings
  • Easy-to-read nameplate
  • UL Recognized Component Listing and CSA approval.
  • Warranty – 12 months from date of first use or 18 months from date of manufacture, whichever comes first.
Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 153-138 F.L. Amps 69 F.L. Amps 141/70.5
S. F Amps 160 S. F Amps 80 S. F Amps
RPM 1800 Hertz 60/50
HP 60 Duty CONTINUOUS TYPE TF
KW 44.8 Model Number C364T17FB8D
Frame 364T Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code G
Insul Class F Protection NOT Therm.Prot.
Eff 100% 93.6 Eff 75%   PF 86.5
UL Yes CSA Yes Bearing OPE 6313
CC Number 005A CE Yes Bearing PE 6313
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 798 LB Enclosure TEFC Lubrication STANDARD
Nameplate 080307 Mounting RIGID Rotation REV

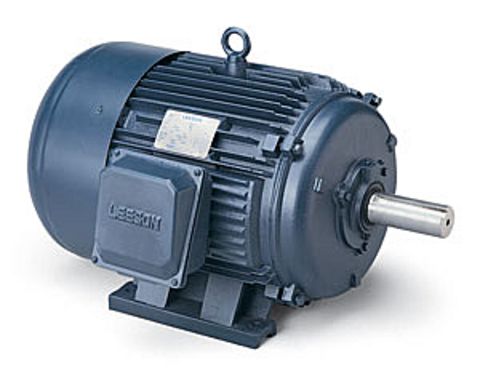

60HP LEESON 1780RPM 364T TEFC 3PH MOTOR G150027
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: G150027.60
Stock # G150027
