20HP LEESON 1765RPM 256T DP 3PH MOTOR G150006.60

20HP LEESON 1765RPM 256T DP 3PH MOTOR G150006.60

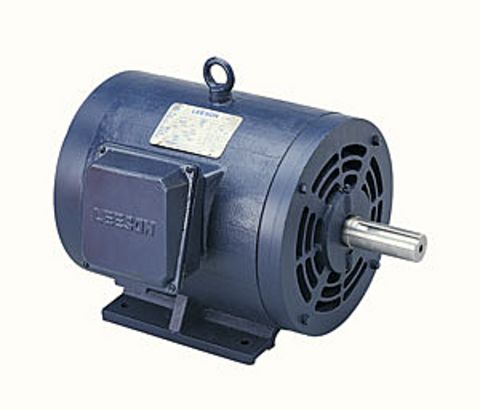

Picture is for reference only.

Part Number:

G150006.60

Model/Spec Number:

N256T17DB7B

Manufacturer:

Leeson Obsolete
G150006.60 LEESON 20HP General Purpose Three Phase Motors.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

69 lbs

Dimensions:

24 x 26 x 24 inches

HS Code:

8501.52.4000

Technical Details

Brand:

Leeson

Output HP:

20

Output KW:

14.9

Output RPM:

1765

Frame Size NEMA:

256T

Mount NEMA:

With Base

Enclosure NEMA:

DP

Enclosure IEC:

IP12

Voltage:

208-230/460

Frequency (Hz):

60

Motor Drawing

Connection Diagram

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item
