10HP LEESON 3450RPM 213JM DP 3PH ULTIMATE-E PUMP MOTOR G141121.00

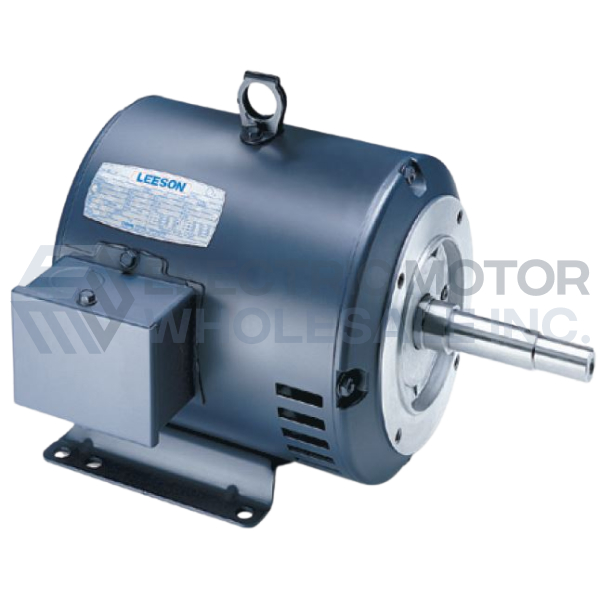

Picture is for reference only.

Part Number:

G141121.00

Model/Spec Number:

C213T34DK5

Manufacturer:

Leeson Obsolete

G141121.00 LEESON 10HP Three Phase Premium JM Pump Motor is designed for continuous duty service on close-coupled pumps using NEMA JM mounting provisions.

Item Discontinued

Click below to view suggested functional replacement.

See Replacement Item

Shipping Details

Weight:

150 lbs

Dimensions:

14 x 28 x 14 inches

HS Code:

8501.52.4000

Technical Details

Specifications

Brand:	Leeson
Application:	Closed Coupled
Output HP:	10
Output KW:	7.5
Output RPM:	3450
Frame Size NEMA:	213JM
Mount NEMA:	C Face With Base
Enclosure NEMA:	DP
Enclosure IEC:	IP22
Voltage:	208-230/460

Documentation

Motor Drawing REF DASH-1115

Connection Diagram

Additional Information

Volts 208-230 Volts 460 Volts F.L. Amps 26-23.4 F.L. Amps 11.7 F.L. Amps S. F Amps 30-27 S. F Amps 13.5 S. F Amps RPM 3600 Hertz 60 HP 10 Duty CONTINUOUS TYPE TD KW 7.5 Model Number C213T34DK5A Frame 213JM Serv. Factor 1.15 Phase 3 Max Amb 40 Design B Code H Insul Class F Protection NOT Therm.Prot. Eff 100% 88.5 Eff 75% PF 90 UL Y-(LEESON UL REC) CSA Yes Bearing OPE 206 CC Number CC005A CE Yes Bearing PE 309 Load Type Inverter Type Speed Range NONE Motor Wt. 130 LB Enclosure DP Lubrication POLYREX EM Nameplate 920005-162 Mounting RIGID Rotation REV
