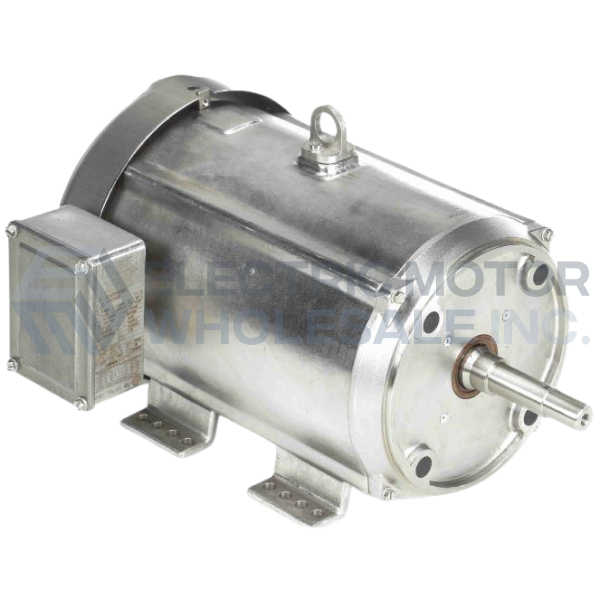

10HP LEESON 1760RPM 215JM TEFC 3PH WASHDOWN PUMP MOTOR G140743.00

10HP LEESON 1760RPM 215JM TEFC 3PH WASHDOWN PUMP MOTOR G140743.00

Picture is for reference only.

Part Number:

G140743.00

Manufacturer:

Leeson Obsolete
G140743.00 LEESON 10HP Three Phase Stainless JM Pump Motor for washdown applications requiring a standard JM pump shaft. Ideal for use in clean room and severe chemical-processing applications involving frequent washdown with nitric acid and caustic lye.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

69 lbs

Dimensions:

13 x 20 x 13 inches

HS Code:

8501.52.4000

Technical Details

Brand:

Leeson

Application:

Washdown Stainless, Closed Coupled

Output HP:

10

Output KW:

7.5

Output RPM:

1760

Frame Size NEMA:

215JM

Mount NEMA:

C Face With Base

Enclosure NEMA:

TEFC

Voltage:

230/460

Frequency (Hz):

60

Motor Drawing

Connection Diagram

Image for 10HP LEESON MICRO STAINLESS VFD 200-240V 3PH INPUT 174738.00

10HP LEESON MICRO STAINLESS VFD 200-240V 3PH INPUT 174738.00

Image for 10HP LEESON MICRO STAINLESS VFD 400-480V 3PH INPUT 174747.00

10HP LEESON MICRO STAINLESS VFD 400-480V 3PH INPUT 174747.00

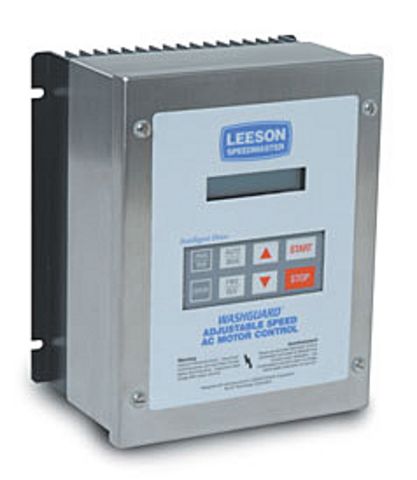

Image for 10HP LEESON MICRO STAINLESS VFD 480-590V 3PH INPUT 174761.00
