10HP LEESON 1760RPM 213TC TEFC 3PH MOTOR G140737

LEESON 140737.00 has been Superseded by G140737.00

Catalog Number:  G140737.00
Description:  10HP,3525RPM,215TC,TEFC,3PH,60HZ,WASHGUARD
Ship Weight:  165 lbs.

This LEESON Motor Can Ship Ground Only.
For expedited needs please contact our sales team.

LEESON WASHGUARD WHITE EPOXY Three Phase C-Face Motors are designed for superior extended service in severe environments. Typical applications include food processing areas requiring frequent sanitation procedures using high pressure cleaning with concentrated caustic solutions, areas of high humidity and in chemical environments.

  • LEESON'S original moisture-shedding "duck" motor
  • USDA-approved white epoxy finish
  • Stainless steel shaft, conduit box cover, nameplate, fan guard
  • Special gaskets, slingers and seals
  • Four endshield drains
  • IRIS insulation system
  • Moisture-resistant interior components
  • Meets IP55 enclosure protection
  • Three phase motors are suitable for use on VFDs
  • 10:1 ratio for constant or variable torque at 1:0 SF



Volts 230 Volts 460 Volts 190/380
F.L. Amps 23.6 F.L. Amps 11.8 F.L. Amps 21/10.5
S. F Amps 26 S. F Amps 13 S. F Amps 23.2/11.6
RPM 3600 Hertz 60/50
HP 10 Duty CONTINUOUS TYPE TF
KW 7.5 Model # C215T34WC2A
Frame 215TC Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code H
Insul Class F Protection NOT Therm.Prot.
Eff 100% 91.7 Eff 75%   PF 87
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 206
CC Number CC005A CE Yes Bearing PE 309
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 165 LB Enclosure TEFC Lubrication STANDARD
Nameplate 081341 Mounting ROUND Rotation REV

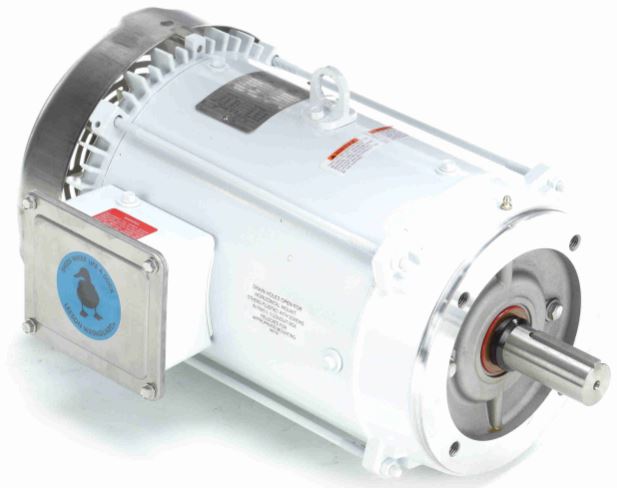

10HP LEESON 1760RPM 213TC TEFC 3PH MOTOR G140737
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: G140737.00
Stock # G140737
