15HP LEESON 3510RPM 215TC TEFC 3PH MOTOR G140697

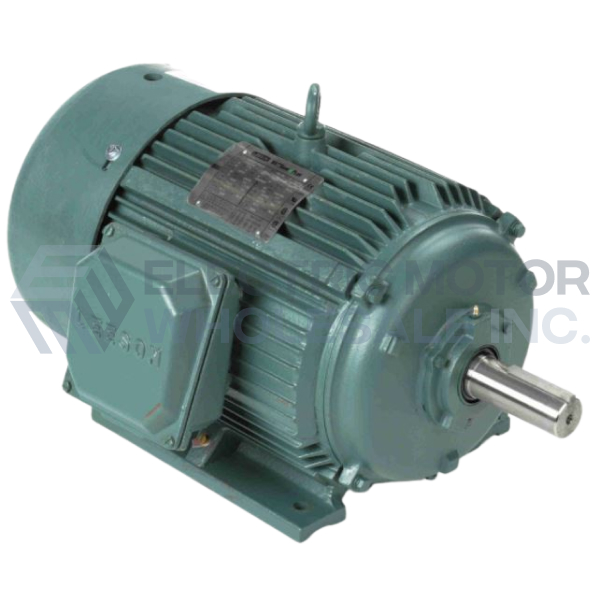

LEESON G140697.00 has been discontinued, Use LEESON 170615.60 with 175869.60 C Face Kit

Catalog Number:  G140697.00
Description:  15HP,3510RPM,215TC,TEFC,3PH,60HZ
Ship Weight:  161 lbs.

TEFC Models: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.

Features Include:

  • Durable rolled steel frame
  • High-quality ball bearings
  • Easy-to-read nameplate
  • UL Recognized Component Listing and CSA approval.
  • Warranty – 12 months from date of first use or 18 months from date of manufacture, whichever comes first.
Catalog Number:  G140697.00
Model Number:  C215T34FK4A
Horsepower:  15//10
RPM:  3510
Hertz:  60//50
Phase:  3
Voltage:  208-230/460//190/380
F.L Amps 208-230/460V:  36/18
F.L Amps 190/380V:  30/15
Frame Size:  215TC
Service Factor:  1.15
Rating:  40C AMB
Locked Rotor Code:  G
NEMA Design Code:  B
Insulation Class:  F3
Duty:  CONT
Eff 75%:  91
Power Factor:  87
Enclosure:  TEFC
Type:  General Purpose
PE Bearing:  309
OPE Bearing:  206
Protection:  NONE
Thermal Protection:  N/A
UL Rated:  YES
CSA Rated:  YES
CE Rated:  YES
Base:  RIGID
Mounting:  F1

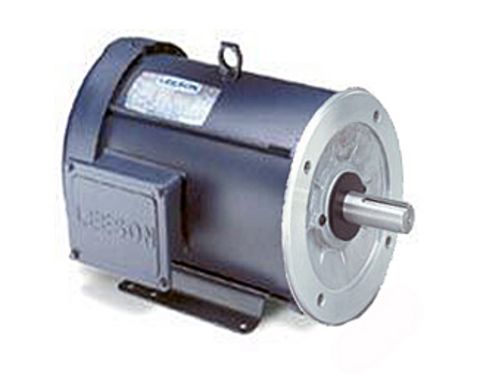

15HP LEESON 3510RPM 215TC TEFC 3PH MOTOR G140697
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: G140697.00
Stock # G140697
