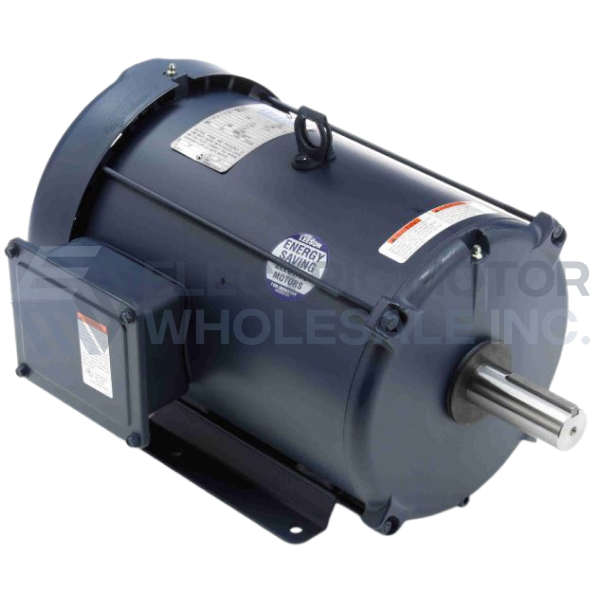

15HP LEESON 3450RPM 215T TEFC 3PH MOTOR G140687.00

15HP LEESON 3450RPM 215T TEFC 3PH MOTOR G140687.00

Picture is for reference only.

Part Number:

G140687.00

Manufacturer:

Leeson Obsolete

Manufacturer Part Number:

C215T34FB10B
G140687.00 LEESON 15HP General Purpose Motor is designed for where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

145 lbs

Dimensions:

23 x 32 x 16 inches

HS Code:

8501.52.4000

Technical Details

Brand:

Leeson

Application:

General Purpose

Output HP:

15//10

Output RPM:

3450//2850

Frame Size NEMA:

215T

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP44

Voltage:

208-230/460//190/380

Frequency (Hz):

60//50

Motor Drawing REF DASH-1115

Connection Diagram

TEFC Models: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.

Features Include:

  • Durable rolled steel frame
  • High-quality ball bearings
  • Easy-to-read nameplate
  • UL Recognized Component Listing and CSA approval.
Image for 15HP BALDOR 3500RPM 215T TEFC 3PH SUPER-E MOTOR EM3713T

15HP BALDOR 3500RPM 215T TEFC 3PH SUPER-E MOTOR EM3713T

MSRP: $3,450.00

Regular Price

$

2,479

40

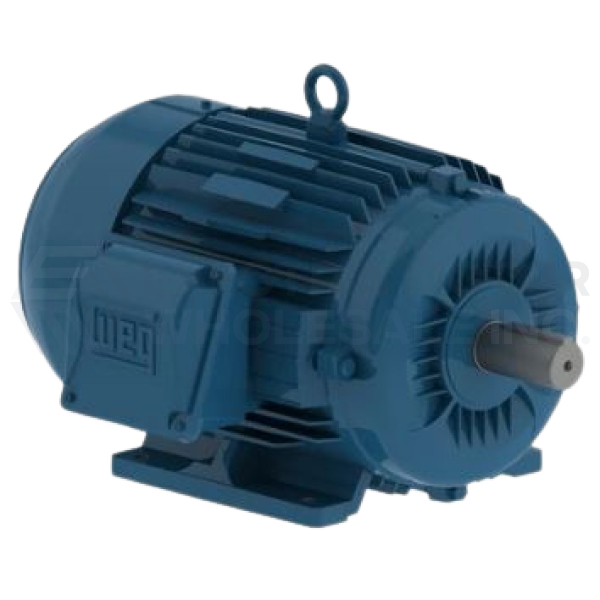

Image for 15HP WEG 3525RPM 213/5T TEFC 3PH MOTOR 01536ET3E215T-W22
