10HP LEESON 3450RPM 215T TEFC 3PH MOTOR G140686
10HP LEESON 3450RPM 215T TEFC 3PH MOTOR G140686

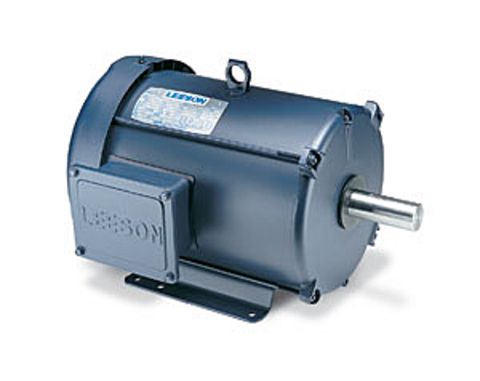

Picture is for reference only.
Part Number:
G140686Manufacturer:
Leeson ObsoleteManufacturer Part Number:
G140686.00This is item is for informational purposes only and cannot be purchased. Please contact customer service for more details.
Shipping Details
Dimensions:
14 x 16 x 14 inchesTechnical Details
Documentation
Additional Information

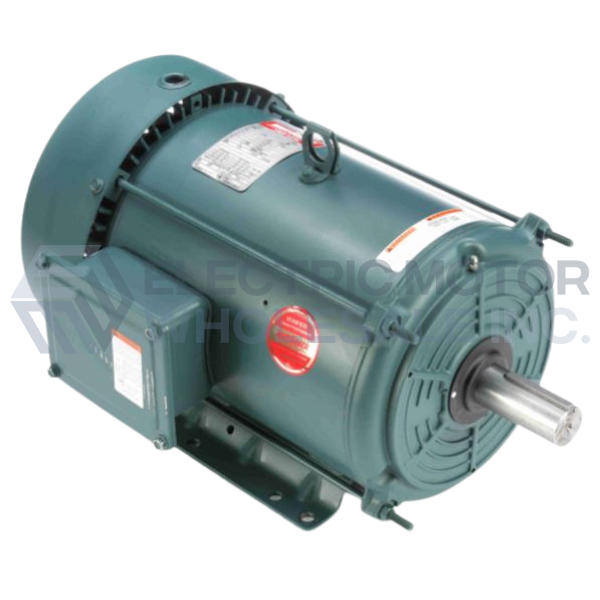

LEESON G140686.00 has been Superseded by 140755.00
| LEESON Catalog Number: | G140686.00 |
| Description: | 10HP,3450RPM,215T,TEFC,3PH,60HZ |
| Ship Weight: | 150 lbs. |
TEFC Models: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.
Features Include:
- Durable rolled steel frame
- High-quality ball bearings
- Easy-to-read nameplate
- UL Recognized Component Listing and CSA approval.
- Warranty – 12 months from date of first use or 18 months from date of manufacture, whichever comes first.
| Volts | 208-230 | Volts | 460 | Volts | 190/380 |
| F.L. Amps | 27-24 | F.L. Amps | 12 | F.L. Amps | 22/11 |
| S. F Amps | 30.5-27 | S. F Amps | 13.5 | S. F Amps | 24.8/12.4 |
| RPM | 3600 | Hertz | 60/50 | ||
| HP | 10 | Duty | CONTINUOUS | TYPE | TF |
| KW | 7.46 | Model Number | C215T34FB9B | ||
| Frame | 215T | Serv. Factor | 1.15 | Phase | 3 |
| Max Amb | 40 | Design | B | Code | G |
| Insul Class | F | Protection | NOT | Therm.Prot. | |
| Eff 100% | 89.5 | Eff 75% | PF | 87 | |
| UL | Y-(LEESON UL REC) | CSA | Yes | Bearing OPE | 206 |
| CC Number | CC005A | CE | Yes | Bearing PE | 307 |
| Load Type | Inverter Type | NONE | Speed Range | NONE | |
| Motor Wt. | 150 LB | Enclosure | TEFC | Lubrication | STANDARD |
| Nameplate | Mounting | RIGID | Rotation | REV |
