7.5HP LEESON 1760RPM 213JP DP 3PH JP PUMP MOTOR G140667.00

7.5HP LEESON 1760RPM 213JP DP 3PH JP PUMP MOTOR G140667.00

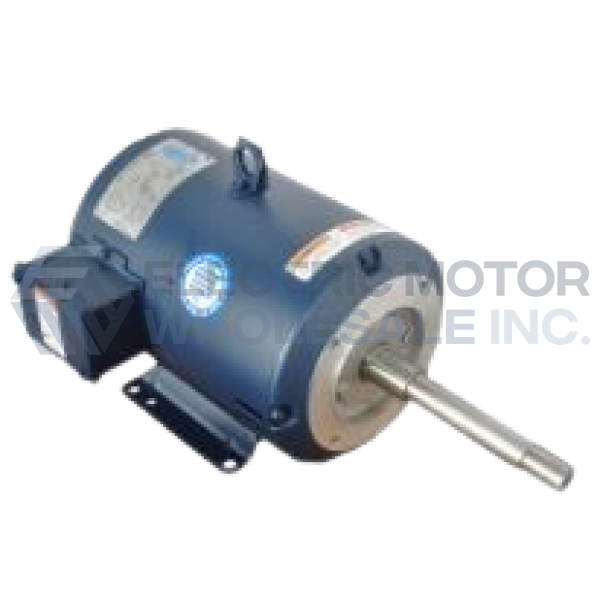

Picture is for reference only.

Part Number:

G140667.00

Model/Spec Number:

C213T17DK14

Manufacturer:

Leeson Obsolete
G140667.00 LEESON 7.5HP Three Phase JP Pump Motor is designed for use with close-coupled pumps having NEMA JP mounting and shaft dimensions.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

146 lbs

Dimensions:

14 x 22 x 14 inches

HS Code:

8501.52.4000

Technical Details

Brand:

Leeson

Application:

Closed Coupled

Output HP:

7.5

Output KW:

5.6

Output RPM:

1760

Frame Size NEMA:

213JP

Mount NEMA:

C Face With Base

Enclosure NEMA:

DP

Enclosure IEC:

IP22

Voltage:

230/460

Motor Drawing

Connection Diagram

Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 23-22 F.L. Amps 11 F.L. Amps 18/9
S. F Amps 26-24 S. F Amps 12 S. F Amps 20/10
RPM 1800 Hertz 60/50
HP 7 1/2 Duty CONTINUOUS TYPE TD
KW 5.6 Model Number C213T17DK14 A
Frame 213JP Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code H
Insul Class F Protection NOT Therm.Prot.
Eff 100% 88.5 Eff 75%   PF 72
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6206
CC Number EXEMPT CE Yes Bearing PE 6209
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 146 LB Enclosure DP Lubrication POLYREX EM
Nameplate 081284 Mounting RIGID C Rotation REV
