15HP LEESON 3480RPM 215JP DP 3PH JP PUMP MOTOR G140656.00

15HP LEESON 3480RPM 215JP DP 3PH JP PUMP MOTOR G140656.00

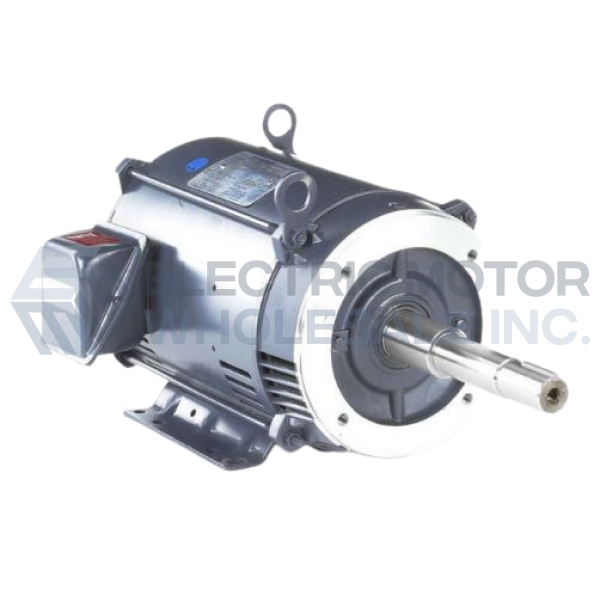

Picture is for reference only.

Part Number:

G140656.00

Model/Spec Number:

C215T34DK2

Manufacturer:

Leeson Obsolete
G140656.00 LEESON 15HP Three Phase JP Pump Motor is designed for use with close-coupled pumps having NEMA JP mounting and shaft dimensions.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

69 lbs

Dimensions:

14 x 22 x 14 inches

HS Code:

8501.52.4000

Technical Details

Brand:

Leeson

Application:

Closed Coupled

Output HP:

15

Output KW:

11.0

Output RPM:

3480

Frame Size NEMA:

215JP

Mount NEMA:

C Face With Base

Enclosure NEMA:

DP

Voltage:

208-230/460

Frequency (Hz):

60

Motor Drawing

Connection Diagram

Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 40-36.5 F.L. Amps 18.2 F.L. Amps 31/15.5
S. F Amps 45-41 S. F Amps 20.5 S. F Amps 35/17.5
RPM 3600 Hertz 60/50
HP 15 Duty CONTINUOUS TYPE TD
KW 11.2 Model Number C215T34DK2A
Frame 215JP Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code J
Insul Class B Protection NOT Therm.Prot.
Eff 100% 89.5 Eff 75%   PF 85.5
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 206
CC Number   CE Yes Bearing PE 309
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 142 LB Enclosure DP Lubrication STANDARD
Nameplate   Mounting RIGID Rotation REV
