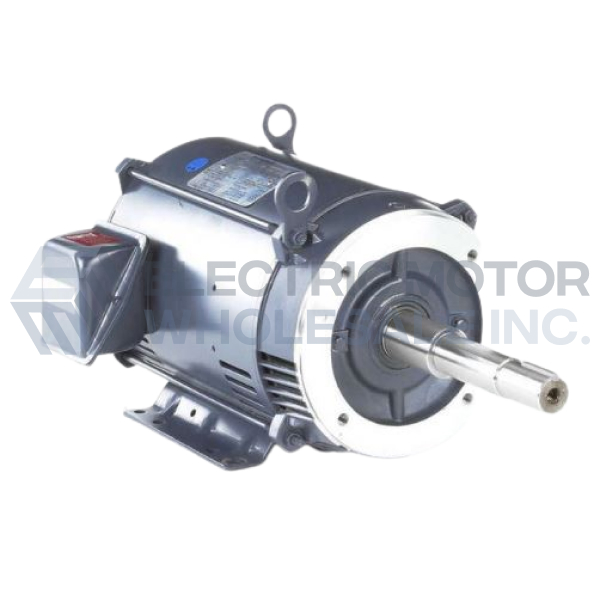

10HP LEESON 3495RPM 213JP DP 3PH JP PUMP MOTOR G140655.00

10HP LEESON 3495RPM 213JP DP 3PH JP PUMP MOTOR G140655.00

Picture is for reference only.

Part Number:

G140655.00

Model/Spec Number:

C213T34DK2A

Manufacturer:

Leeson Obsolete
G140655.00 LEESON 10HP Three Phase JP Pump Motor is designed for use with close-coupled pumps having NEMA JP mounting and shaft dimensions.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

145 lbs

Dimensions:

14 x 22 x 14 inches

HS Code:

8501.52.4000

Technical Details

Brand:

Leeson

Application:

Closed Coupled

Output HP:

10

Output KW:

7.5

Output RPM:

3495

Frame Size NEMA:

213JP

Mount NEMA:

C Face With Base

Enclosure NEMA:

DP

Enclosure IEC:

IP22

Voltage:

230/460

Motor Drawing

Connection Diagram

Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 26-23.4 F.L. Amps 11.7 F.L. Amps 22/11
S. F Amps 30-27 S. F Amps 13.5 S. F Amps 25.4/12.7
RPM 3600 Hertz 60/50
HP 10 Duty CONTINUOUS TYPE TD
KW 7.50 Model Number C213T34DK2 A
Frame 213JP Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code H
Insul Class F Protection NOT Therm.Prot.
Eff 100% 88.5 Eff 75%   PF 90
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 206
CC Number CC005A CE Yes Bearing PE 309
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 137 LB Enclosure DP Lubrication STANDARD
Nameplate   Mounting RIGID Rotation REV
