10HP LEESON 1760RPM 215T TEFC 3PH BRAKE MOTOR G140636.00

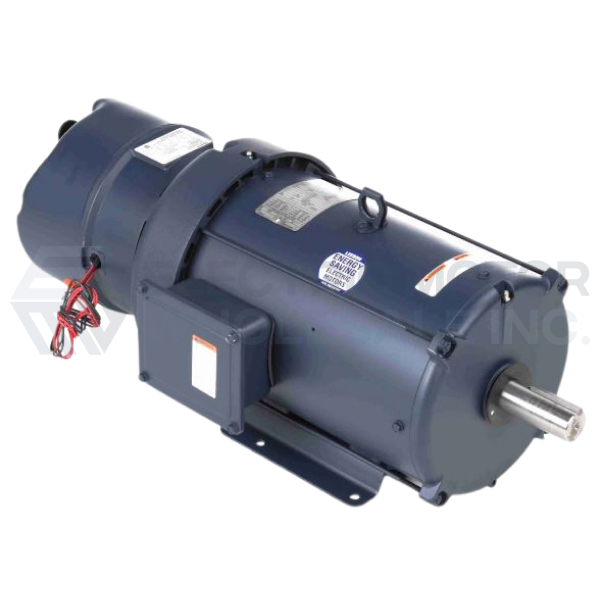

Picture is for reference only.

Part Number:

G140636.00

Model/Spec Number:

C215T17FB25B

Manufacturer:

Leeson Obsolete

G140636.00 LEESON 10HP Three Phase Totally Enclosed Brake motor is designed for use with conveyors, packaging equipment, machine tools, hoists, elevators and door operators

Item Discontinued

Click below to view suggested functional replacement.

See Replacement Item

Shipping Details

Weight:

69 lbs

Dimensions:

14 x 18 x 14 inches

HS Code:

8501.52.4000

Technical Details

Specifications

Brand:	Leeson
Output HP:	10
Output KW:	7.5
Output RPM:	1760
Frame Size NEMA:	215T
Mount NEMA:	With Base
Enclosure NEMA:	TEFC
Enclosure IEC:	IP43
Voltage:	230/460
Frequency (Hz):	60

Additional Information

Volts	208-230	Volts	460	Volts	190/380
F.L. Amps	29-28	F.L. Amps	14	F.L. Amps	26/13
S. F Amps	31-30	S. F Amps	15	S. F Amps	28/14
RPM	1800	Hertz	60/50
HP	10	Duty	CONTINUOUS	TYPE	TF
KW	7.46	Model #	C215T17FB25B
Frame	215T	Serv. Factor	1.15	Phase	3
Max Amb	40	Design	B	Code	J
Insul Class	F	Protection	NOT	Therm.Prot.
Eff 100%	89.5	Eff 75%		PF	76
UL	Yes	CSA	Yes	Bearing OPE	6206
CC Number	005A	CE	Yes	Bearing PE	6207
Load Type		Inverter Type		Speed Range	NONE
Motor Wt.	177 LB	Enclosure	TEFC	Lubrication	POLYREX EM
Nameplate	081284	Mounting	RIGID	Rotation	REV
