7.5HP LEESON 1760RPM 213TC TEFC 3PH BRAKE MOTOR G140605.00

7.5HP LEESON 1760RPM 213TC TEFC 3PH BRAKE MOTOR G140605.00

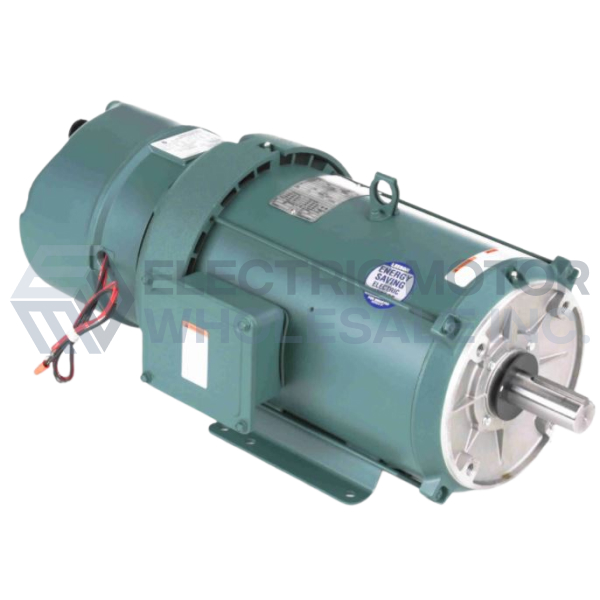

Picture is for reference only.

Part Number:

G140605.00

Model/Spec Number:

C213T17FK10B

Manufacturer:

Leeson Obsolete
G140605.00 LEESON 7.5HP Three Phase Totally Enclosed Brake motor is designed for use with conveyors, packaging equipment, machine tools, hoists, elevators and door operators.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

165 lbs

Dimensions:

14 x 18 x 14 inches

HS Code:

8501.52.4000

Technical Details

Application:

Brakemotor

Output HP:

7.5

Output KW:

5.5

Output RPM:

1760

Frame Size NEMA:

213TC

Mount NEMA:

C Face With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

Voltage:

230/460

Frequency (Hz):

60

LEESON Fail-safe positive, stop and hold brake-motors. Brakes are spring set. Load stopped automatically when power is turned off. LEESON brake-motors feature a power off manual release for convenience, and for use in case of a power failure. The manual release resets automatically. The standard brake is manufactured by Stearns. The brake coil leads are brought into the conduit box of the motor for easy connection and may be connected to operate when power to the motor is shut off, or to be actuated independent of power to the motor.

Image for 7.5HP LEESON 1765RPM 213TC TEFC 3PH WATTSAVER BRAKE MOTOR 140605.00

7.5HP LEESON 1765RPM 213TC TEFC 3PH WATTSAVER BRAKE MOTOR 140605.00

MSRP: $4,406.00

Regular Price

$

3,040

14

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

165 lbs

Dimensions:

14 x 18 x 14 inches

HS Code:

8501.52.4000
