7.5HP LEESON 1760RPM 213T TEFC 3PH BRAKE MOTOR G140603

Catalog Number:  G140603.00
Description:  7.5HP,1760RPM,213T,TEFC,3PH,60HZ,BRAKE
Ship Weight:  165 lbs.

This Leeson Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

LEESON Fail-safe positive, stop and hold brakemotors. Brakes are spring set. Load stopped automatically when power is turned off. LEESON brakemotors feature a power off manual release for convenience, and for use in case of a power failure. The manual release resets automatically. The standard brake is manufactured by Stearns. The brake coil leads are brought into the conduit box of the motor for easy connection and may be connected to operate when power to the motor is shut off, or to be actuated independent of power to the motor.

Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 24-22 F.L. Amps 11 F.L. Amps 18/9
S. F Amps 26-24 S. F Amps 12 S. F Amps 20/10
RPM 1800 Hertz 60/50
HP 7.5 Duty CONTINUOUS TYPE TF
KW 5.60 Model # C213T17FB11B
Frame 213T Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code H
Insul Class F Protection NOT Therm.Prot.
Eff 100% 89.5 Eff 75%   PF 72
UL Yes CSA Yes Bearing OPE 6206
CC Number 005A CE Yes Bearing PE 6207
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 165 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 081284 Mounting RIGID Rotation REV

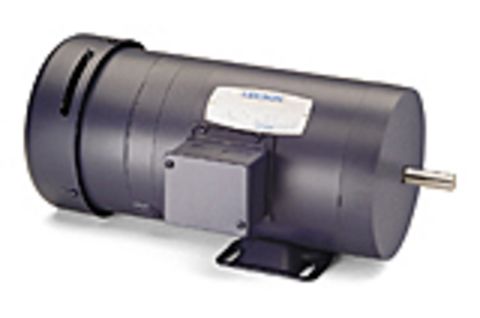

7.5HP LEESON 1760RPM 213T TEFC 3PH BRAKE MOTOR G140603
Click Image to Enlarge
Manufacturer Part Number: G140603.00
Stock # G140603
