3HP LEESON 1140RPM 215TC TEFC 3PH MOTOR G140602
3HP LEESON 1140RPM 215TC TEFC 3PH MOTOR G140602

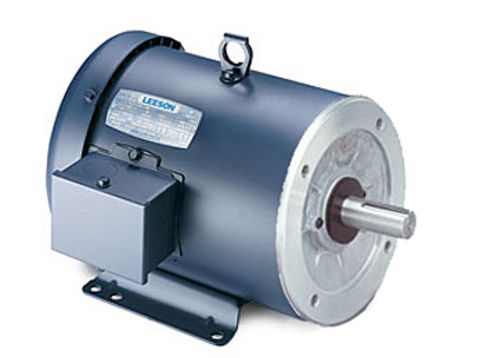

Picture is for reference only.
Part Number:
G140602Manufacturer:
Leeson ObsoleteManufacturer Part Number:
G140482.00This is item is for informational purposes only and cannot be purchased. Please contact customer service for more details.
Shipping Details
Dimensions:
16 x 26 x 16 inchesTechnical Details
Documentation
Additional Information
LEESON G140602.00 has been Superseded by 140834.00
| Catalog Number: | G140602.00 |
| Description: | 3HP,1140RPM,215TC,TEFC,3PH,60/50HZ |
| Ship Weight: | 133 lbs. |
TEFC Models: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.
Features Include:
- Durable rolled steel frame
- High-quality ball bearings
- Easy-to-read nameplate
- Some 56 frame motors have a 56, 56H, 143T and 145T combination base with 12 mounting holes for flexible installation.
- UL Recognized Component Listing and CSA approval.
- Warranty – 12 months from date of first use or 18 months from date of manufacture, whichever comes first.
| Volts | 208-230 | Volts | 460 | Volts | 190/380 |
| F.L. Amps | 15-14.4 | F.L. Amps | 7.2 | F.L. Amps | 14/7 |
| S. F Amps | 16-15.2 | S. F Amps | 7.6 | S. F Amps | 14.8/7.4 |
| RPM | 1200 | Hertz | 60/50 | ||
| HP | 3 | Duty | CONTINUOUS | TYPE | TF |
| KW | 2.24 | Model Number | C215T11FK4B | ||
| Frame | 215TC | Serv. Factor | 1.15 | Phase | 3 |
| Max Amb | 40 | Design | B | Code | K |
| Insul Class | F | Protection | NOT | Therm.Prot. | |
| Eff 100% | 87.5 | Eff 75% | PF | 50 | |
| UL | Yes | CSA | Yes | Bearing OPE | 6206 |
| CC Number | 005A | CE | Yes | Bearing PE | 6207 |
| Load Type | Inverter Type | Speed Range | NONE | ||
| Motor Wt. | 133 LB | Enclosure | TEFC | Lubrication | POLYREX EM |
| Nameplate | 081284 | Mounting | RIGID C | Rotation | REV |
