7.5HP LEESON 1750RPM 213T TEFC 3PH MOTOR G140578

LEESON G140578 has been Superseded by 140450.00

LEESON Catalog Number: G140578.00
Description: 7.5HP,1750RPM,213T,TEFC,3PH,60HZ
Ship Weight: 147 lbs.

TEFC Models: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.

Features Include:

  • Durable rolled steel frame
  • High-quality ball bearings
  • Easy-to-read nameplate
  • UL Recognized Component Listing and CSA approval.
  • Warranty – 12 months from date of first use or 18 months from date of manufacture, whichever comes first.
Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 24-22 F.L. Amps 11 F.L. Amps 18/9
S. F Amps 26-24 S. F Amps 12 S. F Amps 20/10
RPM 1800 Hertz 60/50
HP 7.5 Duty CONTINUOUS TYPE TF
KW 5.60 Model Number C213T17FB8B
Frame 213T Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code H
Insul Class F Protection NOT Therm.Prot.
Eff 100% 89.5 Eff 75%   PF 72
UL Yes CSA Yes Bearing OPE 6206
CC Number 005A CE Yes Bearing PE 6207
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 147 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 081284 Mounting RIGID Rotation REV
7.5HP LEESON 1750RPM 213T TEFC 3PH MOTOR G140578

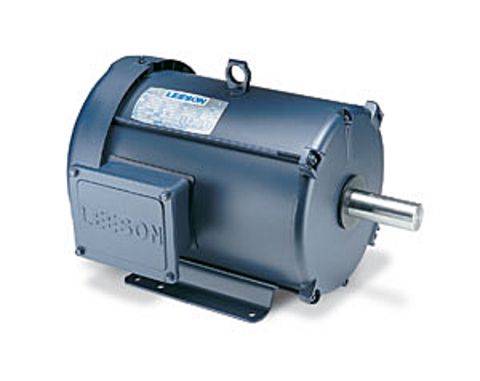

Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: G140578.00
Stock # G140578
