10HP LEESON 1760RPM 215T TEFC 3PH MOTOR G140489.00

10HP LEESON 1760RPM 215T TEFC 3PH MOTOR G140489.00

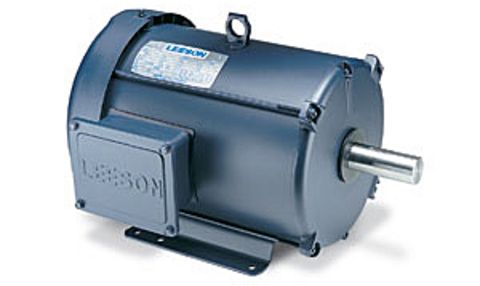

Picture is for reference only.

Part Number:

G140489.00

Model/Spec Number:

C215T17FB23C

Manufacturer:

Leeson Obsolete
G140489.00 LEESON 10HP General Purpose Three Phase Motor.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

69 lbs

Dimensions:

14 x 26 x 14 inches

HS Code:

8501.52.4000

Technical Details

Brand:

Leeson

Application:

General Purpose

Output HP:

10

Output KW:

7.5-10

Output RPM:

1760

Frame Size NEMA:

215t

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP54

Voltage:

208-230/460//190/380

Motor Drawing REF DASH-1150

Connection Diagram

Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 29-28 F.L. Amps 14 F.L. Amps 26/13
S. F Amps 31-30 S. F Amps 15 S. F Amps 28/14
RPM 1800 Hertz 60/50
HP 10 Duty CONTINUOUS TYPE TF
KW 7.46 Model Number C215T17FB23C
Frame 215T Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code J
Insul Class F Protection NOT Therm.Prot.
Eff 100% 89.5 Eff 75%   PF 76
UL Yes CSA Yes Bearing OPE 6206
CC Number 005A CE Yes Bearing PE 6207
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 170 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 081284 Mounting RIGID Rotation REV
