Home > Electric Motors > Discontinued Electric Motors > LEESON Discontinued AC Motors > 7.5HP LEESON 1760RPM 213TC TEFC 3PH MOTOR G140467

7.5HP LEESON 1760RPM 213TC TEFC 3PH MOTOR G140467

LEESON G140467.00 has been Superseded by 141266.00

Catalog Number:  G140467.00
Specification Number:  G140467.00
Description:  7.5HP,1760RPM,213TC,TEFC,3PH,60HZ,WASHGUARD
Ship Weight:  127 lbs.
Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 24-22 F.L. Amps 11 F.L. Amps 18/9
S. F Amps 26-24 S. F Amps 12 S. F Amps 20/10
RPM 1800 Hertz 60/50
HP 7 1/2 Duty CONTINUOUS TYPE TF
KW 5.6 Model # C213T17WC3 A
Frame 213TC Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code H
Insul Class F Protection NOT Therm.Prot.
Eff 100% 89.5 Eff 75%   PF 72
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6206
CC Number NONE CE Yes Bearing PE 6209
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 127 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 081292 Mounting C FACE Rotation REV

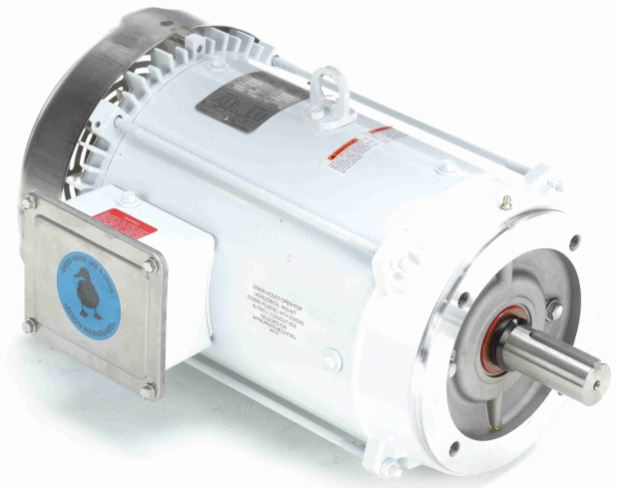

7.5HP LEESON 1760RPM 213TC TEFC 3PH MOTOR G140467
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: G140467.00
Stock # G140467
