10HP LEESON 1760RPM 215TC TEFC 3PH MOTOR G140465
LEESON G140465.00 has been Superseded by 141268.00
| LEESON Catalog Number: | G140465.00 |
| Description: | 10HP,1760RPM,215TC,TEFC,3PH,60HZ,WASHGUARD |
| Ship Weight: | 141 lbs. |
| Volts | 208-230 | Volts | 460 | Volts | 190/380 |
| F.L. Amps | 29-28 | F.L. Amps | 14 | F.L. Amps | 26/13 |
| S. F Amps | 31-30 | S. F Amps | 15 | S. F Amps | 28/14 |
| RPM | 1800 | Hertz | 60/50 | ||
| HP | 10 | Duty | CONTINUOUS | TYPE | TF |
| KW | 7.50 | Model # | C215T17WC3 A | ||
| Frame | 215TC | Serv. Factor | 1.15 | Phase | 3 |
| Max Amb | 40 | Design | B | Code | J |
| Insul Class | F | Protection | NOT | Therm.Prot. | |
| Eff 100% | 89.5 | Eff 75% | PF | 76 | |
| UL | Y-(LEESON UL REC) | CSA | Yes | Bearing OPE | 6206 |
| CC Number | NONE | CE | Yes | Bearing PE | 6209 |
| Load Type | Inverter Type | Speed Range | NONE | ||
| Motor Wt. | 141 LB | Enclosure | TEFC | Lubrication | POLYREX EM |
| Nameplate | 081292 | Mounting | C FACE | Rotation | REV |

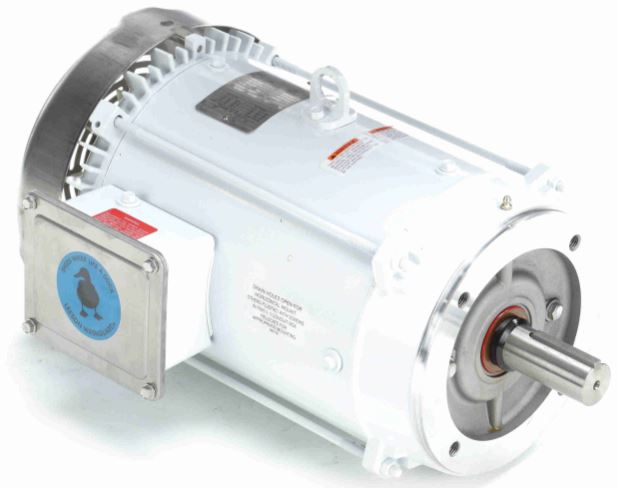

Click Image to Enlarge
Manufacturer Part Number: G140465.00
Stock # G140465
