7.5HP LEESON 1760RPM 213TC TEFC 3PH MOTOR G140183
7.5HP LEESON 1760RPM 213TC TEFC 3PH MOTOR G140183

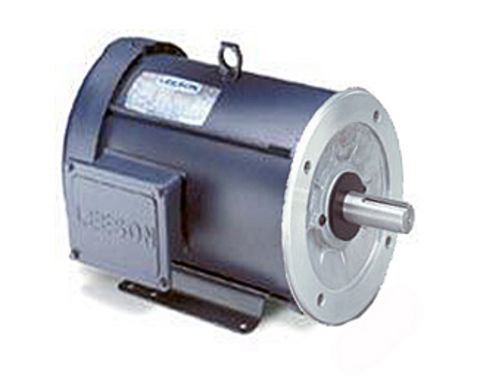

Picture is for reference only.
Part Number:
G140183Manufacturer:
Leeson ObsoleteManufacturer Part Number:
G140183.00This is item is for informational purposes only and cannot be purchased. Please contact customer service for more details.
Shipping Details
Dimensions:
16 x 26 x 16 inchesTechnical Details
Documentation
Additional Information
LEESON G140183.00 has been Superseded by 140521.00
| LEESON Catalog Number: | G140183.00 |
| Description: | 7.5HP,1760RPM,213TC,TEFC,3PH,60//50HZ |
| Ship Weight: | 121 lbs. |
TEFC Models: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.
Features Include:
- Durable rolled steel frame
- High-quality ball bearings
- Easy-to-read nameplate
- UL Recognized Component Listing and CSA approval.
- Warranty – 12 months from date of first use or 18 months from date of manufacture, whichever comes first.
| Volts | 208-230 | Volts | 460 | Volts | 190/380 |
| F.L. Amps | 24-22 | F.L. Amps | 11 | F.L. Amps | 18/9 |
| S. F Amps | 26-24 | S. F Amps | 12 | S. F Amps | 20/10 |
| RPM | 1800 | Hertz | 60/50 | ||
| HP | 7.5 | Duty | CONTINUOUS | TYPE | TF |
| KW | 5.60 | Model Number | C213T17FK8B | ||
| Frame | 213TC | Serv. Factor | 1.15 | Phase | 3 |
| Max Amb | 40 | Design | B | Code | H |
| Insul Class | F | Protection | NOT | Therm.Prot. | |
| Eff 100% | 89.5 | Eff 75% | PF | 72 | |
| UL | Yes | CSA | Yes | Bearing OPE | 6206 |
| CC Number | 005A | CE | Yes | Bearing PE | 6207 |
| Load Type | Inverter Type | Speed Range | NONE | ||
| Motor Wt. | 121 LB | Enclosure | TEFC | Lubrication | POLYREX EM |
| Nameplate | 081284 | Mounting | RIGID C | Rotation | REV |
