10HP LEESON 1760RPM 215TC TEFC 3PH MOTOR G140147.00

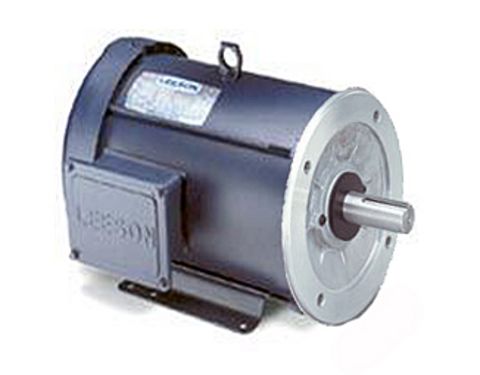

Picture is for reference only.

Part Number:

G140147.00

Model/Spec Number:

C215T17FK4B

Manufacturer:

Leeson Obsolete

G140147.00 LEESON 10HP Three Phase Motor is designed for use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications.

Item Discontinued

Click below to view suggested functional replacement.

See Replacement Item

Shipping Details

Weight:

167 lbs

Dimensions:

16 x 26 x 16 inches

HS Code:

8501.52.4000

Technical Details

Specifications

Brand:	Leeson
Application:	General Purpose
Output HP:	10
Output KW:	7.5
Output RPM:	1760
Frame Size NEMA:	215TC
Mount NEMA:	C Face With Base
Enclosure NEMA:	TEFC
Voltage:	208-230/460//190/380
Frequency (Hz):	60//50

Documentation

Product Information Packet

Additional Information

Volts	208-230	Volts	460	Volts	190/380
F.L. Amps	29-28	F.L. Amps	14	F.L. Amps	26/13
S. F Amps	31-30	S. F Amps	15	S. F Amps	28/14
RPM	1800	Hertz	60/50
HP	10	Duty	CONTINUOUS	TYPE	TF
KW	7.46	Model Number	C215T17FK4B
Frame	215TC	Serv. Factor	1.15	Phase	3
Max Amb	40	Design	B	Code	J
Insul Class	F	Protection	NOT	Therm.Prot.
Eff 100%	89.5	Eff 75%		PF	76
UL	Yes	CSA	Yes	Bearing OPE	6206
CC Number	005A	CE	Yes	Bearing PE	6207
Load Type		Inverter Type		Speed Range	NONE
Motor Wt.	165 LB	Enclosure	TEFC	Lubrication	POLYREX EM
Nameplate	081284	Mounting	RIGID C	Rotation	REV
