5HP LEESON 1140RPM 215T TEFC 3PH MOTOR G140126
5HP LEESON 1140RPM 215T TEFC 3PH MOTOR G140126

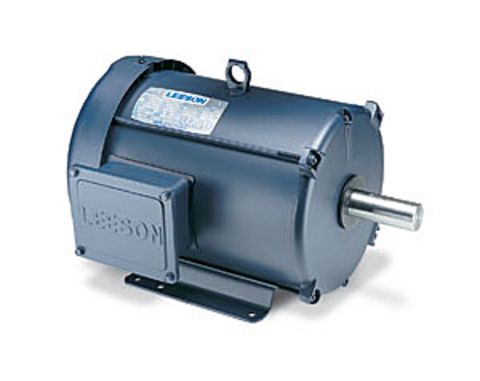

Picture is for reference only.
Part Number:
G140126Manufacturer:
Leeson ObsoleteManufacturer Part Number:
G140126.00Click below to view suggested functional replacement.
Shipping Details
Dimensions:
13 x 22 x 13 inchesTechnical Details
Documentation
Additional Information
LEESON G140126.00 has been Superseded by 171379.60
| LEESON Catalog Number: | G140126.00 |
| Description: | 5HP,1140RPM,215T,TEFC,3PH,60HZ |
| Ship Weight: | 145 lbs. |
TEFC Models: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.
Features Include:
- Durable rolled steel frame
- High-quality ball bearings
- Easy-to-read nameplate
- UL Recognized Component Listing and CSA approval.
- Warranty – 12 months from date of first use or 18 months from date of manufacture, whichever comes first.
| Volts | 208-230 | Volts | 460 | Volts | 190/380 |
| F.L. Amps | 19.8-19.6 | F.L. Amps | 9.8 | F.L. Amps | 16.8/8.4 |
| S. F Amps | 21-20.8 | S. F Amps | 10.4 | S. F Amps | 17.6/8.8 |
| RPM | 1200 | Hertz | 60/50 | ||
| HP | 5 | Duty | CONTINUOUS | TYPE | TF |
| KW | 3.70 | Model Number | C215T11FB8C | ||
| Frame | 215T | Serv. Factor | 1.15 | Phase | 3 |
| Max Amb | 40 | Design | B | Code | J |
| Insul Class | F | Protection | NOT | Therm.Prot. | |
| Eff 100% | 87.5 | Eff 75% | PF | 55 | |
| UL | Yes | CSA | Yes | Bearing OPE | 6206 |
| CC Number | 005A | CE | Yes | Bearing PE | 6207 |
| Load Type | Inverter Type | Speed Range | NONE | ||
| Motor Wt. | 145 LB | Enclosure | TEFC | Lubrication | POLYREX EM |
| Nameplate | 081284 | Mounting | RIGID | Rotation | REV |
