7.5HP LEESON 3505RPM 184TC TEFC 3PH MOTOR 132205

LEESON G132016.00 has been superseded by 132205.00

Catalog Number:  132205.00
Model Number:  C184T34WK17
Description:  7.5HP,3505RPM,184TC,TEFC,3PH,60HZ,EPOXY WASHGUARD
Ship Weight: 101 lbs.

This LEESON Motor Can Ship Ground Freight ONLY!

For expedited needs please contact our sales team for freight options.

LEESON WASHGUARD WHITE EPOXY Three Phase Motors are designed for superior extended service in severe environments. Typical applications include food processing areas requiring frequent sanitation procedures using high pressure cleaning with concentrated caustic solutions, areas of high humidity and in chemical environments.

  • LEESON'S original moisture-shedding "duck" motor
  • USDA-approved white epoxy finish
  • Stainless steel shaft, conduit box cover, nameplate, fan guard
  • Special gaskets, slingers and seals
  • Four endshield drains
  • IRIS insulation system
  • Moisture-resistant interior components
  • Meets IP55 enclosure protection
  • Three phase motors are suitable for use on VFDs
  • 10:1 ratio for constant or variable torque at 1:0 SF


Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 19.2-17.6 F.L. Amps 8.8 F.L. Amps 15/7.5
S. F Amps 22-19.8-9.9 S. F Amps   S. F Amps 16.4/8.2
RPM 3600 Hertz 60/50
KW 5.60 Model # C184T34WK17A
Frame 184TC Serv. Factor 1.15 Phase 3
Max Amb 40 Design A Code L
Insul Class F Protection NOT Therm.Prot.
Eff 100% 89.5 Eff 75%   PF 88.5
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6205
CC Number CC005A CE Yes Bearing PE 6207
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 101 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 081292 Mounting RIGID Rotation REV

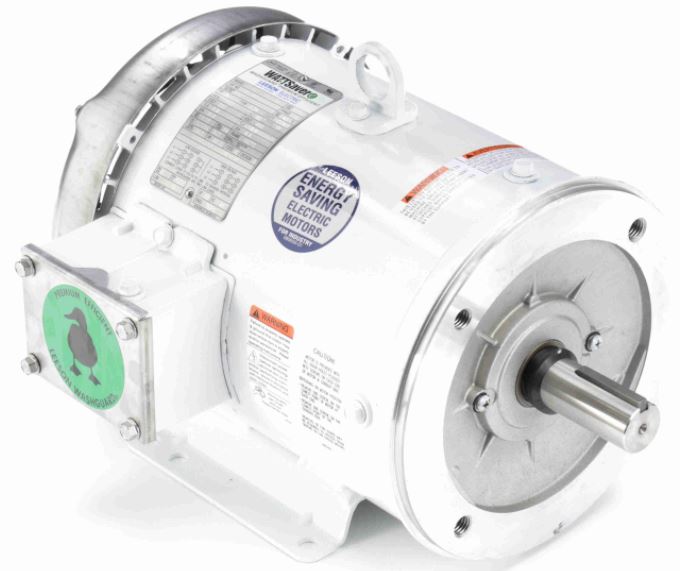

7.5HP LEESON 3505RPM 184TC TEFC 3PH MOTOR 132205
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 132205.00
Stock # 132205
Price: $1,054.00
Compare At: $3,099.00
