7.5HP LEESON 3505RPM 184JM TEFC 3PH PUMP MOTOR G131970

LEESON 131970.00 has been Superseded by G131970.00

Catalog Number:  G131970.00
Model Number: C184T34WK13
Description:  7.5HP,1750RPM,184JM,3PH,60HZ,EPOXY WASHGUARD
Ship Weight:  104 lbs.

This LEESON Motor Can Ship Ground Freight ONLY!

For expedited needs please contact our sales team for freight options.

WASHGUARD WHITE EPOXY: Washdown duty three phase JM Frame pump motors for industrial service. These motors include all of the features of LEESON's White Duck WASHGUARD EPOXY motors with the addition of a JM pump frame shaft for use on closed coupled pumps. For demanding pump applications in wet, humid, or washdown environments.

Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 17.6-16.8 F.L. Amps 8.4 F.L. Amps 14/7
S. F Amps 18 S. F Amps 9 S. F Amps 16/8
RPM 3600 Hertz 60/50
HP 7 1/2 Duty CONTINUOUS TYPE TF
KW 5.60 Model # C184T34WK13A A
Frame 184JM Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code J
Insul Class F Protection NOT Therm.Prot.
Eff 100% 88.5 Eff 75%   PF 94.5
UL Yes CSA Yes Bearing OPE 6205
CC Number EXEMPT CE Yes Bearing PE 6207
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 116.5 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 081292 Mounting RIGID C Rotation REV

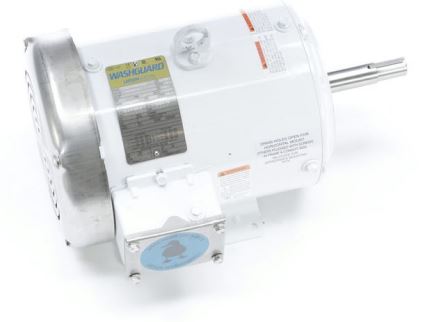

7.5HP LEESON 3505RPM 184JM TEFC 3PH PUMP MOTOR G131970
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: G131970.00
Stock # G131970
