5HP LEESON 3510RPM 184JM TEFC 3PH EPOXY WASHDOWN PUMP MOTOR G131968.00

5HP LEESON 3510RPM 184JM TEFC 3PH EPOXY WASHDOWN PUMP MOTOR G131968.00

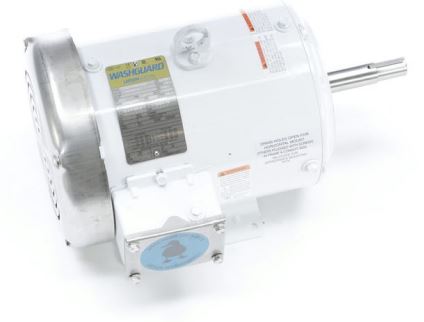

Picture is for reference only.

Part Number:

G131968.00

Model/Spec Number:

C184T34WK12A

Manufacturer:

Leeson Obsolete
G131968.00 LEESON 5HP Washdown duty three phase JM Frame pump motors for industrial service. These motors include all of the features of LEESON's White Duck WASHGUARD EPOXY motors with the addition of a JM pump frame shaft for use on closed coupled pumps.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

69 lbs

Dimensions:

12 x 22 x 12 inches

HS Code:

8501.52.4000

Technical Details

Brand:

Leeson

Application:

Closed Coupled, Washdown Epoxy

Output HP:

5

Output KW:

3.7

Output RPM:

3510

Frame Size NEMA:

184JM

Mount NEMA:

C Face With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

Voltage:

230/460

Product Information Packet
