3HP LEESON 1760RPM 182JM TEFC 3PH PUMP MOTOR G131967

LEESON 131967.00 has been Superseded by G131967.00

Catalog Number:  G131967.00
Model Number: C182T17WK15
Description:  3HP,1760RPM,182JM,3PH,60HZ,EPOXY WASHGUARD
Ship Weight:  70 lbs.

WASHGUARD WHITE EPOXY: Washdown duty three phase JM Frame pump motors for industrial service. These motors include all of the features of LEESON's White Duck WASHGUARD EPOXY motors with the addition of a JM pump frame shaft for use on closed coupled pumps. For demanding pump applications in wet, humid, or washdown environments.

Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 8-8.6 F.L. Amps 4.3 F.L. Amps 7.8/3.9
S. F Amps 11.2-9.6 S. F Amps   S. F Amps 8.4/4.2
RPM 1800 Hertz 60/50
HP 3 Duty CONTINUOUS TYPE TF
KW 2.24 Model # C182T17WK15A A
Frame 182JM Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code K
Insul Class F Protection NOT Therm.Prot.
Eff 100% 87.5 Eff 75%   PF 74
UL Yes CSA Yes Bearing OPE 6205
CC Number EXEMPT CE Yes Bearing PE 6206
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 70 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 081292 Mounting RIGID C Rotation REV

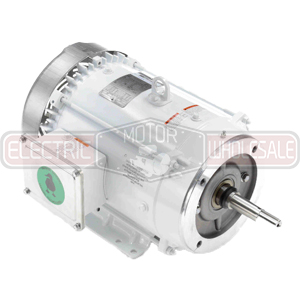

3HP LEESON 1760RPM 182JM TEFC 3PH PUMP MOTOR G131967
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: G131967.00
Stock # G131967
